FEATURES

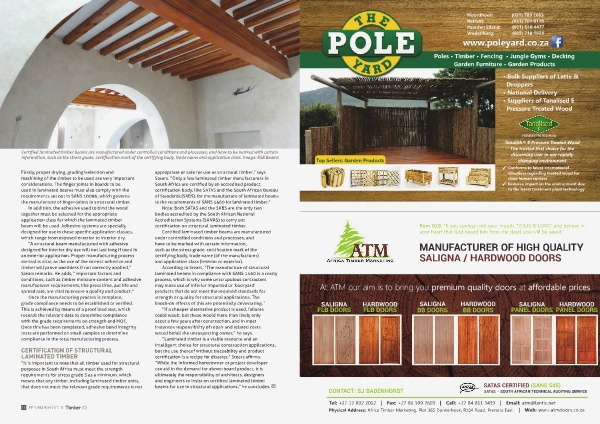

Certified laminated timber beams are manufactured under controlled conditions and processes, and have to be marked with certain information, such as the stress grade, certification mark of the certifying body, trade name and application class. Image: RSB Beams
Firstly, proper drying, grading / selection and machining of the timber to be used are very important considerations. The finger joints in boards to be used in laminated beams must also comply with the requirements set out in SANS 10096, which governs the manufacture of finger-joints in structural timber.
In addition, the adhesive used to bind the wood together must be selected for the appropriate application class for which the laminated timber beam will be used. Adhesive systems are specially designed for use in these specific application classes, which range from exposed exterior to interior dry.
“ A structural beam manufactured with adhesive designed for interior dry use will not last long if used in an exterior application. Proper manufacturing process control is vital, as the use of the correct adhesive and timber will prove worthless if not correctly applied,” Stears remarks. He adds,“ Important factors and conditions, such as timber moisture content and adhesive manufacturer requirements, like press time, pot life and spread rate, are vital to ensure a quality end product.” Once the manufacturing process is complete, grade compliance needs to be established or verified. This is achieved by means of a proof load test, which records the relevant data to determine compliance with the grade requirements on strength and MOE. Once this has been completed, adhesive bond integrity tests are performed on small samples to determine compliance in the total manufacturing process.
CERTIFICATION OF STRUCTURAL LAMINATED TIMBER
“ It is important to note that all timber used for structural purposes in South Africa must meet the strength requirements for stress grade 5 as a minimum, which means that any timber, including laminated timber units, that does not meet the relevant grade requirements is not
appropriate or safe for use as structural timber,” says Stears.“ Only a few laminated timber manufacturers in South Africa are certified by an accredited product certification body, like SATAS and the South African Bureau of Standards( SABS), for the manufacture of laminated beams to the requirements of SANS 1460 for laminated timber.”
Note: Both SATAS and the SABS are the only two bodies accredited by the South African National Accreditation Systems( SANAS) to carry out certification on structural laminated timber.
Certified laminated timber beams are manufactured under controlled conditions and processes, and have to be marked with certain information, such as the stress grade, certification mark of the certifying body, trade name( of the manufacturer) and application class( interior or exterior).
According to Stears,“ The manufacture of structural laminated beams in compliance with SANS 1460 is a costly process, which is why some unscrupulous contractors may make use of inferior imported or‘ backyard’ products that do not meet the required standards for strength or quality for structural applications. The knock-on effects of this are potentially devastating.”
“ If a cheaper alternative product is used, failures could result, but these would more than likely only occur a few years after construction, and in most instances responsibility of repair and related costs would befall the unsuspecting owner,” he says.
“ Laminated timber is a viable resource and an intelligent choice for structural construction applications, but the use thereof without traceability and product certification is a recipe for disaster,” Stears affirms.“ While the informed homeowner or project developer can aid in the demand for above-board product, it is ultimately the responsibility of architects, designers and engineers to insist on certified laminated timber beams for use in structural applications,” he concludes.
