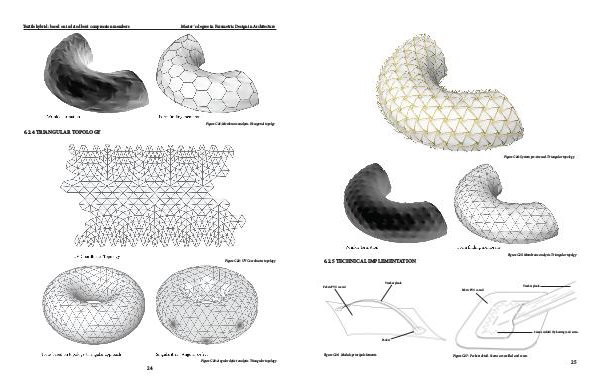

Figure C24: System pre-stressed. Triangular topology
Figure C25: Membrane analysis. Triangular topolgy
6.2.5 TECHNICAL IMPLEMENTATION
Timber plank
Fabric PVC coated
Timber plank
Fabric PVC coated
Seams welded (by heating) and sewn.
Pocket
Figure C26: Module principal elements.
Figure C27: Pockets detail. Seams are welded and sewn.
