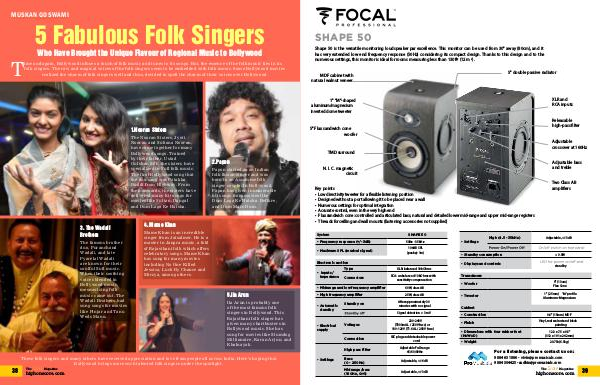

SHAPE 50
Shape 50 is the versatile monitoring loudspeaker par excellence. This monitor can be used from 30" away (80cm), and it
has very extended low end frequency response (50Hz) considering its compact design. Thanks to this design and to the
numerous settings, this monitor is ideal for rooms measuring less than 130ft 2 (12m 2 ).
5" double passive radiator
MDF cabinet with
natural walnut veneer
XLR and
RCA inputs
1" “M”-shaped
aluminum/magnesium
inverted dome tweeter
Releasable
high-pass filter
5" Flax sandwich cone
woofer
Adjustable
crossover at 160Hz
TMD surround
Adjustable bass
and treble
N. I. C. magnetic
circuit
Two Class AB
amplifiers
Key points
• Low directivity tweeter for a flexible listening position
• Designed without a port allowing it to be placed near a wall
• Numerous settings for optimal integration
• Accurate control, even in the very high end
• Flax sandwich cone: controlled and articulated bass, natural and detailed lower mid-range and upper mid-range registers
• Threads for ceilling and wall mounts (fastening accessories not supplied)
System
SHAPE 50
• Frequency response (+/-3dB) 50Hz - 35kHz
• Maximum SPL (musical signal) 106dB SPL
(peak @ 1m)
Electronic section
Type
• Inputs/
Impedance
Connectors
RCA: unbalanced 10kOhms with
sensitivity compensation
• High frequency amplifier 25W, class AB
• Electrical
supply
• Settings
After approximately 30
minutes with no signal
Signal detection > 3 mV
Voltages 220-240V
(T800mAL / 250V fuse) or
100-120V (T1.6AL / 250V fuse)
Connection IEC plug and detachable power
cord
High pass filter
< 0.5W
• Standby consumption
• Displays and controls
60W, class AB
Standby on
Adjustable, +/-3dB
standby
XLR: balanced 10kOhms
• Midrange and low frequency amplifier
• Automatic
standby
High (4.5 - 35kHz)
• Settings
Adjustable Full range
45/60/90Hz
Bass
(0 - 250Hz) Adjustable, +/-6dB
Midrange/bass
(160Hz, Q=1) Adjustable, +/-3dB
Transducers
• Woofer 5" (13cm)
Flax Cone
• Tweeter 1" (25mm) 'M' profile
Aluminum-Magnesium
Cabinet
0.6" (15mm) MDF
• Construction
Vinyl, real walnut and black
painting
• Finish
• Dimensions with four rubber feet
(HxWxD)
12.3 x 7.5 x 9.5"
(312 x 191 x 242mm)
20.7lb (6.5kg)
• Weight
