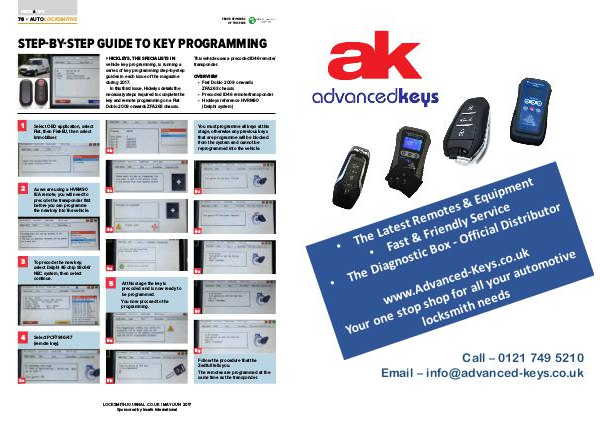

STEP-BY-STEP GUIDE TO KEY PROGRAMMING
» » HICKLEYS, THE SPECIALISTS IN
vehicle key programming, is running a
series of key programming step-by-step
guides in each issue of the magazine
during 2017.
In this third issue, Hickelys details the
necessary steps required to complete the
key and remote programming on a Fiat
Doblo 2009 onwards ZFA263 chassis.
1
Select OBD application, select
Fiat, then Fiat-EU, then select
Immobiliser.
3
As we are using a HVRM90
IEA remote, you will need to
precode the transponder first
before you can programme
the new key into the vehicle.
To precode the new key,
select Delphi 46 chip 93c66/
NEC system, then select
continue.
4c 5c
4d 5d
4e
5
5e
At this stage the key is
precoded and is now ready to
be programmed.
You now proceed to the
programming.
4
Select PCF7946/47
(remote key).
OVERVIEW
• Fiat Doblo 2009 onwards
ZFA263 chassis
• Precoded ID46 remote/transponder
• Hickleys reference HVRM90
(Delphi system)
You must programme all keys at this
stage, otherwise any previous keys
that are programme will be blocked
from the system and cannot be
reprogrammed into the vehicle.
4b
2
This vehicle uses a precoded ID46 remote/
transponder.
5f
5a
5g
Follow the procedure that the
Zedfull tells you.
4a
5b
LOCKSMITHJOURNAL.CO.UK | MAY/JUN 2017
Sponsored by Insafe International
The remotes are programmed at the
same time as the transponder.
