AUTO LOCKSMITHS
10 11 12

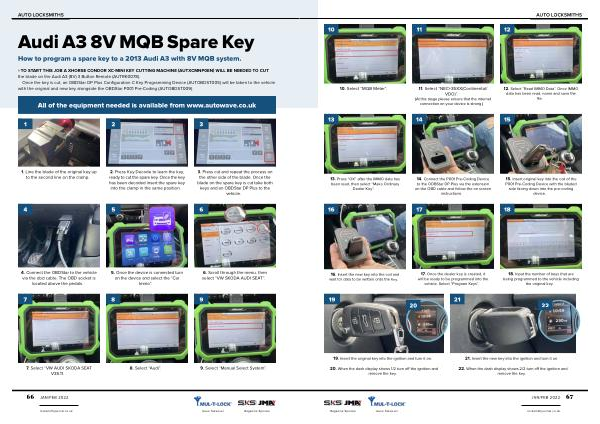

10 . Select “ MQB Meter ”. 11 . Select “ NEC + 35XX ( Continental / VDO )”. ( At this stage please ensure that the internet connection on your device is strong .)
12 . Select “ Read IMMO Data ”. Once IMMO data has been read , name and save the file .
13 14 15
13 . Press “ OK ” after the IMMO data has been read , then select “ Make Ordinary Dealer Key ”.
14 . Connect the P001 Pre-Coding Device to the ODBStar DP Plus via the extension on the OBD cable and follow the on screen instructions .
15 . Insert original key into the coil of the P001 Pre-Coding Device with the bladed side facing down into the pre-coding device .
16 17 18
16 . Insert the new key into the coil and wait for data to be written onto the key .
17 . Once the dealer key is created , it will be ready to be programmed into the vehicle . Select “ Program Keys ”.
18 . Input the number of keys that are being programmed to the vehicle including the original key .
19 21 20 22
19 . Insert the original key into the ignition and turn it on .
20 . When the dash display shows 1 / 2 turn off the ignition and remove the key .
21 . Insert the new key into the ignition and turn it on .
22 . When the dash display shows 2 / 2 turn off the ignition and remove the key .
