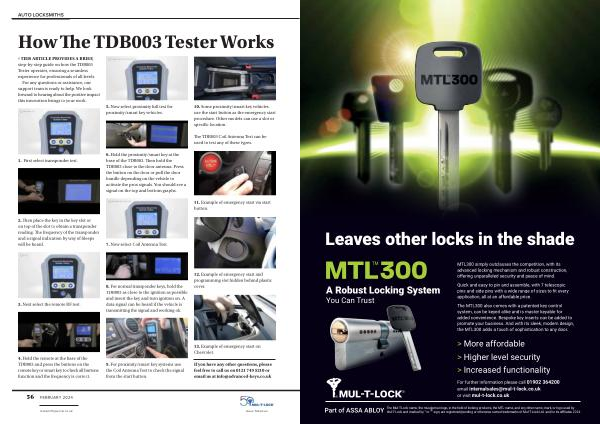

How The TDB003 Tester Works
ยป THIS ARTICLE PROVIDES A BRIEF , step-by-step guide on how the TDB003 Tester operates , ensuring a seamless experience for professionals of all levels .
For any questions or assistance , our support team is ready to help . We look forward to hearing about the positive impact this innovation brings to your work .
5 . Now select proximity full test for proximity / smart key vehicles .
10 . Some proximity / smart key vehicles use the start button as the emergency start procedure . Other models can use a slot or specific location .
The TDB003 Coil Antenna Test can be used to test any of these types .
1 . First select transponder test .
6 . Hold the proximity / smart key at the base of the TDB003 . Then hold the TDB003 close to the door antenna . Press the button on the door or pull the door handle depending on the vehicle to activate the prox signals . You should see a signal on the top and bottom graphs .
11 . Example of emergency start via start button .
2 . Then place the key in the key slot or on top of the slot to obtain a transponder reading . The frequency of the transponder and a signal indication by way of bleeps will be heard .
7 . Now select Coil Antenna Test .
3 . Next select the remote RF test .
8 . For normal transponder keys , hold the TDB003 as close to the ignition as possible and insert the key and turn ignition on . A data signal can be heard if the vehicle is transmitting the signal and working ok .
12 . Example of emergency start and programming slot hidden behind plastic cover .
4 . Hold the remote at the base of the TDB003 and press the buttons on the remote key or smart key to check all buttons function and the frequency is correct .
9 . For proximity / smart key systems use the Coil Antenna Test to check the signal from the start button .
13 . Example of emergency start on Chevrolet .
If you have any other questions , please feel free to call us on 0121 749 5210 or email us at info @ advanced-keys . co . uk
