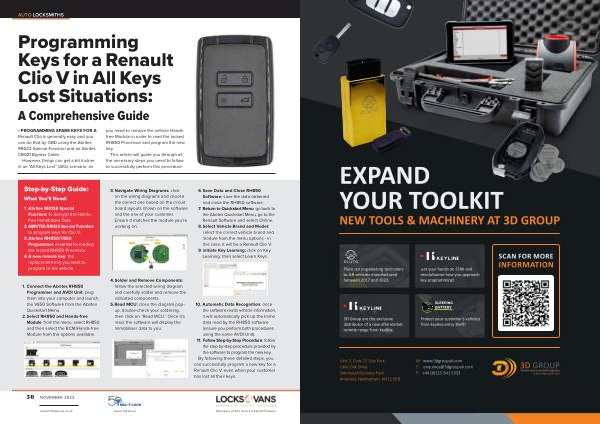

Programming Keys for a Renault Clio V in All Keys Lost Situations :
A Comprehensive Guide
» PROGRAMMING SPARE KEYS FOR A Renault Clio is generally easy and you can do that by OBD using the Abrites RR022 Special Function and an Abrites CB021 Bypass Cable .
However , things can get a bit trickier in an “ All Keys Lost ” ( AKL ) scenario , as
you need to remove the vehicle Handsfree Module in order to read the locked RH850 Processor and program the new key .
This article will guide you through all the necessary steps you need to follow to successfully perform this procedure .
Step-by-Step Guide :
What You ’ ll Need :
1 . Abrites RR026 Special Function : to decrypt the Handsfree Immobilizer Data .
2 . ABRITES RR022 Special Function : to program keys for Clio V .
3 . Abrites RH850 / V850 Programmer : essential for reading the locked RH850 Processor .
4 . A new remote key : the replacement key you want to program to the vehicle .
1 . Connect the Abrites RH850 Programmer and AVDI Unit : plug them into your computer and launch the V850 Software from the Abrites Quickstart Menu .
2 . Select RH850 and Hands-free Module : from the menu , select RH850 and then select the BCM / Hands-free Module from the options available .
3 . Navigate Wiring Diagrams : click on the wiring diagrams and choose the correct one based on the circuit board layouts shown on the software and the one of your customer . Ensure it matches the module you ’ re working on .
4 . Solder and Remove Components : follow the selected wiring diagram and carefully solder and remove the indicated components .
5 . Read MCU : close the diagram popup , double-check your soldering , then click on “ Read MCU .” Once it ’ s read , the software will display the Immobiliser data to you .
6 . Save Data and Close RH850 Software : save the data obtained and close the RH850 software .
7 . Return to Quickstart Menu : go back to the Abrites Quickstart Menu , go to the Renault Software and select Online .
8 . Select Vehicle Brand and Model : select the correct vehicle brand and module from the menu options - in this case , it will be a Renault Clio V .
9 . Initiate Key Learning : click on Key Learning , then select Learn Keys .
10 . Automatic Data Recognition : once the software reads vehicle information , it will automatically pick up the Immo data read by the RH850 software ( ensure you perform both procedures using the same AVDI Unit ).
11 . Follow Step-by-Step Procedure : follow the step-by-step procedure provided by the software to program the new key .
By following these detailed steps , you can successfully program a new key for a Renault Clio V , even when your customer has lost all their keys .
