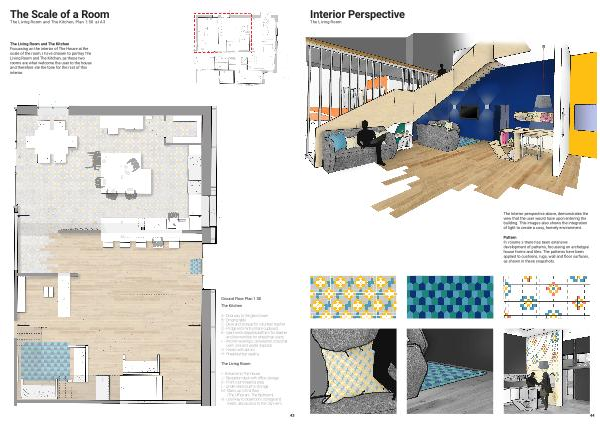

The Scale of a Room
The Living Room and The Kitchen, Plan 1:50 at A3
The Living Room and The Kitchen
Focussing on the interior of The House at the
scale of the room, I have chosen to portray The
Living Room and The Kitchen, as these two
rooms are what welcome the user to the house
and therefore ste the tone for the rest of this
interior.
C
D
A
B
E
1 1
G
F
H
I
J
Ground Floor Plan 1:50
The Kitchen
N
2 2
K
A - Doorway to the glass tower
B - Dinging table
C - Desk and storage for volunteer teacher
D - Fridge and Pantry/store cupboard
E - Island with stepped platform for teacher
and low worktop for wheelchair users.
F - Kitchen worktops, dishwasher, industrial
oven, sink and waste disposal.
G - Hooks with aprons
H - Breakfast-bar seating
The Living Room
L
M
I - Entrance to The House
J - Reception desk with office storage
K - Front room/waiting area.
L - Under-stairs built-in storage.
M - Stairs up to first floor
(The Office and The Bedroom).
N - Doorway to cloakroom, storage and
toilets, also access to the City Farm.
43
