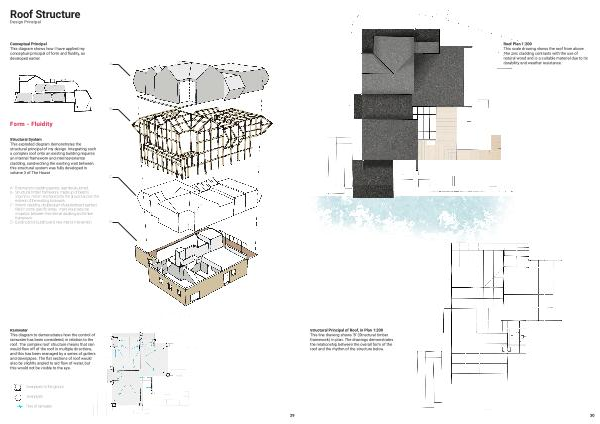

Roof Plan 1:200
This scale drawing shows the roof from above.
The zinc cladding contrasts with the use of
natural wood and is a suitable material due to its
durability and weather resistance.
Structural Principal of Roof, in Plan 1:200
This line drawing shows 'B' (Structural timber
framework) in plan. The drawings demonstrates
the relationship between the overall form of the
roof and the rhythm of the structure below.
