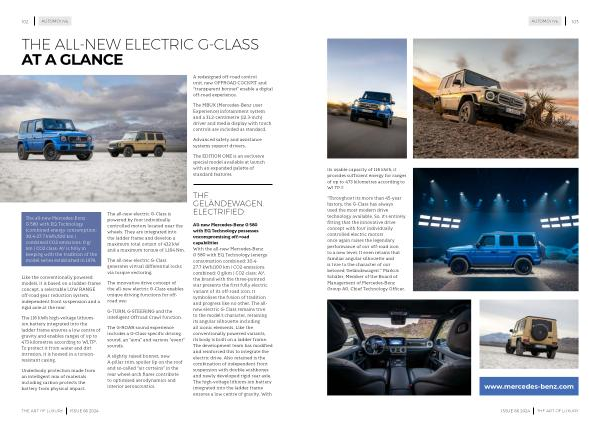

THE ALL-NEW ELECTRIC G-CLASS AT A GLANCE
A redesigned off-road control unit , new OFFROAD COCKPIT and “ transparent bonnet ” enable a digital off-road experience .
The MBUX ( Mercedes-Benz User Experience ) infotainment system and a 31.2-centimetre ( 12.3-inch ) driver and media display with touch controls are included as standard .
Advanced safety and assistance systems support drivers .
The EDITION ONE is an exclusive special model available at launch with an expanded palette of standard features .
The all-new Mercedes-Benz G 580 with EQ Technology ( combined energy consumption : 30.4-27.7 kWh / 100 km | combined CO2 emissions : 0 g / km | CO2 class : A ) 1 is fully in keeping with the tradition of the model series established in 1979 .
Like the conventionally powered models , it is based on a ladder-frame concept , a selectable LOW RANGE off-road gear reduction system , independent front suspension and a rigid axle at the rear .
The 116 kWh high-voltage lithiumion battery integrated into the ladder frame ensures a low centre of gravity and enables ranges of up to 473 kilometres according to WLTP 1 . To protect it from water and dirt intrusion , it is housed in a torsionresistant casing .
Underbody protection made from an intelligent mix of materials including carbon protects the battery from physical impact .
The all-new electric G-Class is powered by four individually controlled motors located near the wheels . They are integrated into the ladder frame and develop a maximum total output of 432 kW and a maximum torque of 1,164 Nm .
The all-new electric G-Class generates virtual differential locks via torque vectoring .
The innovative drive concept of the all-new electric G-Class enables unique driving functions for offroad use :
G-TURN , G-STEERING and the intelligent Offroad Crawl function .
The G-ROAR sound experience includes a G-Class-specific driving sound , an “ aura ” and various “ event ” sounds .
A slightly raised bonnet , new A-pillar trim , spoiler lip on the roof and so-called “ air curtains ” in the rear wheel-arch flares contribute to optimised aerodynamics and interior aeroacoustics .
THE GELÄNDEWAGEN . ELECTRIFIED :
All-new Mercedes-Benz G 580 with EQ Technology possesses uncompromising off-road capabilities With the all-new Mercedes-Benz G 580 with EQ Technology ( energy consumption combined : 30.4- 27.7 kWh / 100 km | CO2 emissions combined : 0 g / km | CO2 class : A ) 2 , the brand with the three-pointed star presents the first fully electric variant of its off-road icon . It symbolises the fusion of tradition and progress like no other . The allnew electric G-Class remains true to the model ’ s character , retaining its angular silhouette including all iconic elements . Like the conventionally powered variants , its body is built on a ladder frame . The development team has modified and reinforced this to integrate the electric drive . Also retained is the combination of independent front suspension with double wishbones and newly developed rigid rear axle . The high-voltage lithium-ion battery integrated into the ladder frame ensures a low centre of gravity . With
