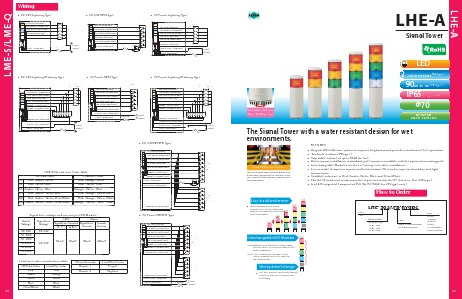

Signal Tower
LHE-A
LHE-A
LED
2 Alarm Sounds (FB Type)
90dB at 1m (FB Type)
IP65
Φ70
(FB Type:IP54)
Adjustable Volume
(Max. 85dB at 1m)
NPN/PNP
Open-collector
The Signal Tower with a water resistant design for wet
environments.
Dual Reflection System
PATLITE’s original dual reflection system with
its exclusive hybrid prism-cut lens and 5 color
LED modules creates a bright, distinctive and
even illumination.
FEATURES
Original LED reflection system to improve brightness and provide maintenance-free operation.
Two built-in alarms (FB type)
Adjustable volume of up to 90dB (at 1m).
Direct mount installation is standard; pole-mount is available with the optional mounting pole.
Interchangeable Modules need no re-wiring, even after installation.
Lens is made of superior impact and heat resistant AS resin for superior durability and light
transmission.
• Available colors are in Red, Amber, Green, Blue, and Clear/White.
• Has the CE mark and conforms to the requirements for the EC directive. (for 24V type)
• Is a UL Recognized Component (File No. E215660, for 24V type only).
•
•
•
•
•
•
How to Order
Easy to add and remove
•
When adding or removing
modules, the center shaft that
matches the amount of tiers has
to be purchased.
LHE-502AFB-RYGBC
Tiers
1~5
Rated Voltage
02: AC/DC 24V
10: AC 100V
12: AC 120V
20: AC 220V
Type
Blank: Continuous light
FB: Flashing/ Alarm
Color
R: Red
Y: Amber
G: Green
B: Blue
C: Clear/White
(Top to bottom)
Interchangeable LED Modules
Changeable color sequence: Easy to add/
remove up to 5 colored modules even
after installation.
Note: LED modules of the same color
within a signal tower will light up
simultaneously.
Wiring doesn't change
•
The LED Module colors correspond
to the wiring, so re-wiring is not
necessary.
