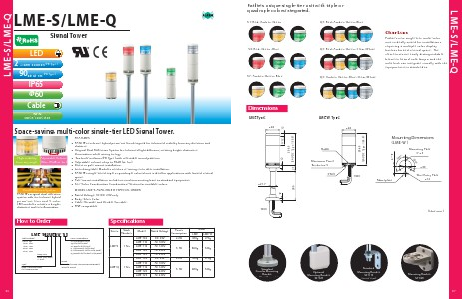

LME-S/LME-Q
LME-S/LME-Q
Signal Tower
LED
2 Alarm Sounds (FB Type)
90dB at 1m (FB Type)
IP65
Φ60
Cable
NPN
Open-collector
Space-saving, multi-color single-tier LED Signal Tower.
High visibility Adjustable Volume
from any angle (Max. 85dB at 1m)
FEATURES
• PATLITE’s exclusive hybrid prism-cut lens designed for enhanced visibility from any direction and
distance.
• Original Dual Reflection System for enhanced light diffusion; creating bright, distinctive
illumination while saving energy.
• Two built-in alarms (FB Type) with selectable sound patterns.
• Adjustable volume of up to 90dB (at 1m).
• Direct or pole mount installation.
• Interchangeable Modules need no re-wiring, even after installation.
• PATLITE’s single-tiered triple or quadruple colored unit is ideal for applications with limited vertical
space.
• Pole-mount installation includes a circular mounting base as standard equipment.
• See “Color Coordination Combination” Section for available colors.
Dual Reflection System
PATLITE’s original dual reflection
system with its exclusive hybrid
prism-cut lens and 5 color
LED modules creates a bright,
distinctive and even illumination.
•
•
•
•
MODEL LME-S AVAILABLE BY SPECIAL ORDER
Rated Voltage: AC/DC 24V only.
Body: Silver Color
Cable: Versatile and flexible 3m cable.
PNP compatible
How to Order
Specifications
Series
LME-102UFBW-S1
Rated Voltage
02: DC 24V
10: AC 100V
12: AC 120V
20: AC 220V
23: AC 230V
Body Color
Blank: Ivory White
U: Silver
Type
Blank: Continuous light
FB: Flashing/ Alarm
86
Color Combinations
S1: Red, Amber, Green
S4: Red, Green, Blue
S7: Amber, Green, Blue
Q1: Red, Amber, Green, Blue
Q2: Red, Amber, Green, Clear/White
Q4: Amber, Green, Blue, Clear/White
Mount
Blank: Pole Mount with circular mounting bracket
W: Direct Mount
LME-S
LME-Q
Stack
Number
1 Tier
1 Tier
Model
LME-102
LME-110
LME-112
LME-120
LME-123
LME-102
LME-110
LME-112
LME-120
LME-123
Power
Rated Voltage Consumption
DC 24V
AC 100V
AC 120V
AC 220V
AC 230V
DC 24V
AC 100V
AC 120V
AC 220V
AC 230V
Mass
LME-W
270g
2.2W
LME
430g
5.1W
860g
520g
2.2W
430g
270g
5.1W
680g
520g
