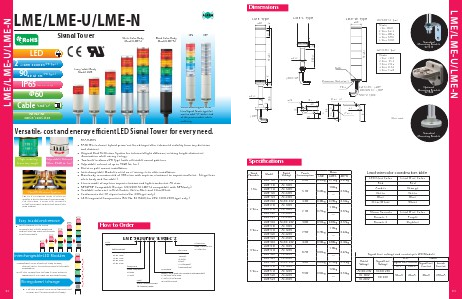

LME/LME-U/LME-N
LME/LME-U/LME-N
Signal Tower
Silver Color Body
Model LME-U
Black Color Body
Model LME-N
ON
OFF
LED
2 Alarm Sounds (FB Type)
90dB at 1m (FB Type)
IP65
Φ60
Cable (LME-U)
Ivory-white Body
Model LME
(FB, L, K: IP54)
When ordering the clearlens Signal Tower type, be
sure to add "-Z" at the end
of the part number when
ordering
NPN/PNP
Open-collector
Versatile, cost and energy efficient LED Signal Tower for every need.
•
•
High visibility
from any angle
Adjustable Volume
(Max. 85dB at 1m)
Dual Reflection System
PATLITE’s original dual reflection
system with its exclusive hybrid prismcut lens and 5 color LED modules
creates a bright, distinctive and even
illumination.
•
•
•
•
•
•
•
•
•
•
FEATURES
PATLITE’s exclusive hybrid prism-cut lens designed for enhanced visibility from any direction
and distance.
Original Dual Reflection System for enhanced light diffusion; creating bright, distinctive
illumination while saving energy.
Two built-in alarms (FB Type) with selectable sound patterns.
Adjustable volume of up to 90dB (at 1m).
Direct or pole mount installation.
Interchangeable Modules need no re-wiring, even after installation.
Main body is constructed of ABS resin with superior resistance to impact and heat. (U type has
silver body and 3m cable)
Lens is made of superior impact resistant and light translucent AS resin.
NPN/PNP Compatible (Except 120/220V AC LME-U, compatible with NPN only).
Available colors are in Red, Amber, Green, Blue, and Clear/White.
Conforms to the CE requirements (for 24V type only).
UL Recognized Components (File No. E215660; for 24V, 120V, 230V type only)
Easy to add and remove
•
When adding or removing
modules, the center shaft that
matches the amount of tiers has
to be purchased.
How to Order
LME-502UFBW-RYGBC-Z
Tiers
1~5
Interchangeable LED Modules
Changeable color sequence: Easy to add/
remove up to 5 colored modules even after
installation.
Note: LED modules of the same color within a
signal tower will l ight up simultaneously.
Wiring doesn't change
82
•
The LED Module colors correspond to the
wiring, so re-wiring is not necessary.
Rated Voltage
02: AC/DC 24V
10: AC 100V
12: AC 120V
20: AC 220V
23: AC 230V
Body Color
Blank: lvory White
N: Black
U: Silver
Type
Blank: Continuous Light
FB: Flashing/ Alarm
LED Color
R: Red
Y: Amber
G: Green
B: Blue
C: Clear/White
(Top to bottom)
Lens Color
Blank: Colored Lens
Z: Clear Lens
Mounting
Blank: Pole Mount with circular mounting bracket
K: SZ-020 Pole Mount
L: SZ-013 Pole Mount
W: Direct Mount
