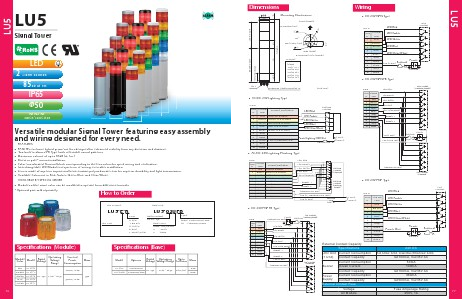

LU5
LU5
Signal Tower
LED
2 Alarm Sounds
85dB at 1m
IP65
Φ50
NPN/PNP
Open-collector
Versatile modular Signal Tower featuring easy assembly
and wiring designed for every need.
FEATURES
PATLITE’s exclusive hybrid prism-cut lens designed for enhanced visibility from any direction and distance.
Two built-in alarms (FB Type) with selectable sound patterns.
Maximum volume of up to 85dB (at 1m).
Direct or pole* mount installation.
Color-coordinated Terminal block corresponding to the lens colors for quick wiring and verification.
Interchangeable LED Modules requires no re-wiring, even after installation.
Lens is made of superior impact and heat resistant polycarbonate resin for superior durability and light transmission.
Available Colors are in Red, Amber, Green, Blue, and Clear/White.
AVAILABLE BY SPECIAL ORDER
• Modules of the same color can be modified to operate from different terminals.
* Optional part sold separately.
•
•
•
•
•
•
•
•
How to Order
LED Module
Base Unit
LU5-E-R
LED Unit
Specifications (Module)
76
LU5-E-R
LU5-E-Y
LU5-E-G DC 24V 21.6V - 26.4V
LU5-E-B
LU5-E-C
Model
LU5-02
LU5-02FB
52mA/1.25W
44g
42mA/1.25W
Type
Blank: Continuous Light
FB : Flashing/ Alarm
Specifications (Base)
Current/
Module Model Rated Operating
Power
Color
Voltage Voltage Consumption Mass
Range
RED
AMBER
GREEN
BLUE
CLEAR
LU5-02UFB
Rated Voltage
Color
02: DC 24V
R: Red
Y: Amber
Base Color
G: Green
Blank: Ivory White
B: Blue
U : Silver
C: White/Clear
K : Black
Options
Rated
Operating
Open
Voltage Voltage Range Collector Mass
Continuous
DC 24V
2 Sounds/Flash
21.6V - 26.4V
NPN/PNP
182g
200g
