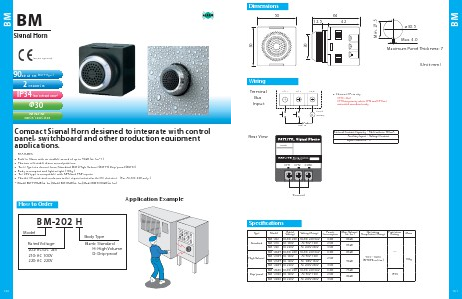

BM
BM
Signal Horn
(AC/DC 24V Only)
90dB at 1m (BM-H Type)
2 Channels
IP34 (BM-D Front Only)
Φ30
NPN/PNP
Open-collector
Compact Signal Horn designed to integrate with control
panel, switchboard and other production equipment
applications.
•
•
•
•
•
•
FEATURES
Built-in Alarm with an audible sound of up to 90dB (at 1m*1).
Has two selectable alarm sound patterns.
Three Types to choose from; Standard (BM), High Volume (BM-H), Drip-proof (BM-D)
Body is compact and lightweight (100g).
The 24V type is compatible with NPN and PNP inputs.
Has the CE mark and conforms to the requirements for the EC directive. (For AC/DC 24V only.)
*1 Model BM-H: 90dB (at 1m); Model BM: 85dB (at 1m); Model BM-D: 80dB (at 1m)
Application Example
How to Order
BM-202 H
Model
Rated Voltage
202: AC/DC 24V
210: AC 100V
220: AC 220V
160
Body Type
Blank: Standard
H: High Volume
D: Drip-proof
