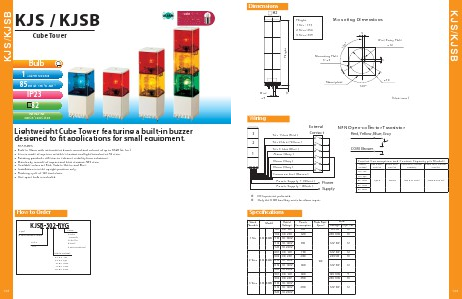

KJS/KJSB
KJS / KJSB
Model DEB LED Lamp
Recommended Product
For more details on Model DEB
Refer to the “Replacement Bulb”
Section at the end of this Catalog
Cube Tower
Bulb
1 Alarm Sound
85dB at 1m (KJSB)
IP23
82
NPN/PNP
Open-collector
Lightweight Cube Tower featuring a built-in buzzer
designed to fit applications for small equipment.
•
•
•
•
•
•
•
•
FEATURES
Built-in Alarm with intermittent buzzer sound and volume of up to 85dB (at 1m).
Lens is made of superior weather-resistant and light-translucent AS resin.
Rotating parabolic reflector to enhance visibility from a distance.
Main body is made of impact and heat resistant ABS resin.
Available colors are Red, Amber, Green, and Blue.
Installation is in the upright position only.
Flashing cycle of 160 times/min.
One spare bulb is included.
How to Order
KJSB-302-RYG
Type
B: With audible alarm
Tiers
1~3
Color
R: Red
Y: Amber
G: Green
B: Blue
(Top to bottom)
Rated Voltage
01: DC 12V
02: DC 24V
10: AC 100V
12: AC 120V
20: AC 220V
148
