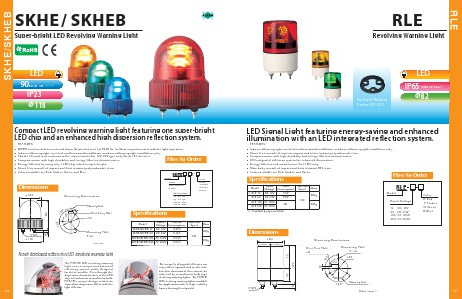

SKHE/SKHEB
SKHE/ SKHEB
Super-bright LED Revolving Warning Light
LED
90dB at 1m
IP23
Φ118
(SKHEB)
Compact LED revolving warning light featuring one super-bright
LED chip and an enhanced high dispersion reflection system.
•
•
•
•
•
•
•
FEATURES
SKHEB series includes an internal alarm (hi-pitched tone) of 90dB (at 1m) that is synchronized with the light operation.
Indoors allows upright, inverted, and horizontal installation; outdoors allows upright installation only.
Has the CE mark and conforms to the requirements (for 12V, 24V type only) for the EC directive.
Compact motor with high durability and energy-efficient characteristics.
Energy-efficient by using only 1 LED chip which is super-bright.
Dome lens is made of impact and heat resistant polycarbonate resin.
Colors available are Red, Amber, Green, and Blue.
How to Order
SKHE - A-
Model
Alarm
None: Without
B: With
Dimensions
ø102
Color
R: Red
Y: Amber
G: Green
B: Blue
Rated Voltage
12 : DC 12V
24 : DC 24V
100: AC 100V
200: AC 200V
Mounting Dimensions
45
12
0
Wire Entry Hole
ø70
3-M5
ø118
18
°
120
142
°
Nameplate
Specifications
Model
Mounting Hole
3-ø6
(Unit: mm)
SKHE/SKHEB-12
SKHE/SKHEB-24
SKHE/SKHEB-100
SKHE/SKHEB-200
Rated
Current
Flash Rate Mass
Voltage Consumption
(fpm)
DC 12V
0.25A
400g
DC 24V
0.16A
120
AC 100V
0.04A
600g
AC 200V
0.02A
Newly developed reflector for LED revolving warning light
126
The PATLITE LED revolving warning
light uses a unique and patented
reflecting system, solely designed
for these models. Even though the
dispersion characteristics of the LED
chip is less than an incandescent bulb,
PATLITE’s unique design creates an
equivalent dispersion effect with the
light reflector.
The uniquely designed reflectors not
only reflect upward and to the side,
but also downward; this cannot be
achieved by incandescent bulb type
revolving warning lights. The PATLITE
LED revolving warning light is suitable
for applications where high visibility
from a low angle is required.
