consumption
0.8w per LED
60 LED per 5m (16ft)
er consumption: SMD3528
5m X 60LED X 0.08W = 24
2 amps + 10% contingency
2 amps per 5m of LED strip
eet needed for backlighting
Plexi-Glass display panels
quals to approx. 220 amps
X 12 volts = 2,640 watts
capacities
&
consumption
0.8w per LED
60 LED per 5m (16ft)
Solar PV Data for Detroit, MI
WBAN NO. 94847
Latitude: 42.42°
Longitude: 83.02°
Elevation: 627 feet
Mean Pressure: 14.4 psia
Power consumption: SMD3528
5m X 60LED X 0.08W = 24
24/12 Volts = 2 amps + 10% contingency
Total = 2.2 amps per 5m of LED strip
Station Type: Secondary
X 100 feet needed for backlighting
Plexi-Glass display panels
Average Incident Solar Radiation
(Btu/ft²/day) ± 9% contingency:
South orientation//[September]: 1630
X 144 square feet: 237,600 Btu/day
Equates to approx. 70 kW per day
POWER FROM
SOLAR ARRAY
DC output to LED
Equals to approx. 220 amps
X 12 volts = 2,640 watts

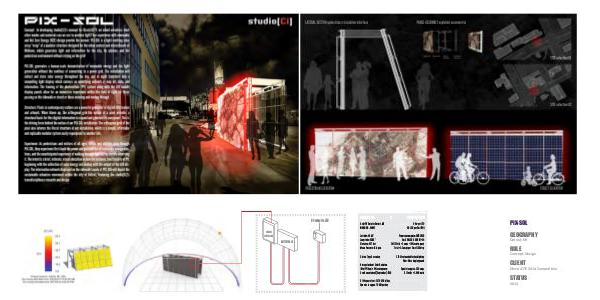

PIX-SOL
GEOGRAPHY
Detroit, MI
ROLE
Concept, Design
CLIENT
DlectriCITY 2014 Competition
STATUS
2014
