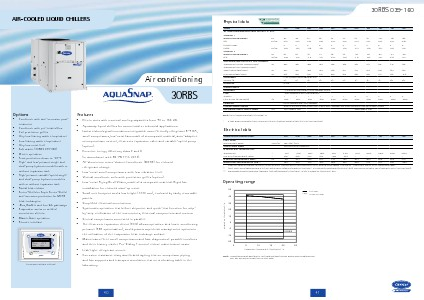

Air-Cooled Liquid Chillers
Air conditioning
30RBS
Options
• Condenser with anti-corrosion posttreatment
• Condenser with pre-treated fins
• Coil protection grilles
• Very low leaving water temperature
• Low leaving water temperature
• Very low noise level
• Soft starter (30RBS 039-080)
• Winter operation
• Frost protection down to -20°C
• High- and low-pressure single and
dual-pump hydronic modules with or
without expansion tank
• High-pressure variable-speed singleand dual-pump hydronic modules
with or without expansion tank
• Partial heat reclaim
• Enviro-Shield or Super Enviro-Shield
anti-corrosion protection for MCHE
heat exchangers
• JBus, BacNet and LonTalk gateways
• Evaporator screw or welded
connection sleeves
• Master/slave operation
• Remote interface
\\MAINMENU\STATUS
CAPB_T
DEM_LIM
SP
CTRL_PNT
EMSTOP
0 %
100 %
4.2 °C
-28.9 °C
dsable
Circuit B Total Capacity
START/STOP
ENTER
PRO-DIALOG+
Pro-Dialog+ operator interface
Features
• Eleven sizes with nominal cooling capacities from 40 to 156 kW.
• Aquasnap liquid chillers for commercial or industrial applications.
• Latest technologi al innovations integrated: ozone-friendly refrigerant R-410A,
c
scroll compressors, low-noise fans made of a composite material, auto-adaptive
microprocessor control, electronic expansion valve and variable-speed pump
(option).
• Eurovent energy efficiency class C and D
(in accordance with EN14511-3: 2013).
• All-aluminium micro-channel condenser (MCHE) for reduced
refrigerant charge.
• Low-noise scroll compressors with low vibration level.
• Vertical condenser coils with protection grilles (option).
• Low-noise Flying Bird IV fans, made of a composite material. Rigid fan
installation for reduced start-up noise.
• Small unit footprint and a low height (1330 mm), enclosed by easily removable
panels.
• Simplified electrical connections.
• Systematic operation test before shipment and quick-test function for stepby-step verification of the instruments, electrical components and motors.
• Several compressors connected in parallel.
• The electronic expansion device (EXV) allows operation at a lower condensing
pressure (EER optimisation), and dynamic superheat management optimises
the utilisation of the evaporator heat exchange surface.
• Maintenance-free scroll compressors and fast diagnosis of possible incidents
and their history via the Pro-Dialog+ control reduce maintenance costs.
• Leak-tight refrigerant circuit.
• Corrosion resistance tests, accelerated ageing test on compressor piping
and fan supports and transport simulation test on a vibrating table in the
laboratory.
40
