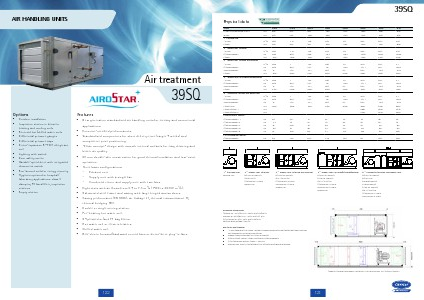

39SQ Physical data 39SQ Height (including base frame) Width 1- Exhaust unit Air flow Length 2 - Supply unit heating Air flow Heating capacity Length 3 - Supply unit heating and cooling Air flow Heating capacity Cooling capacity Length 4 – Supply unit: mixing/heating/cooling Air flow Heating capacity Cooling capacity Length 5 – Combined exhaust and supply unit Air flow Heating capacity Cooling capacity Length total Length section 1 Length section 2 Electric heater option Heating capacity 1 Heating capacity 2 Heating capacity 3 Heating capacity 4 Heating capacity 5 Pre-heating coil option Heating capacity 1 – Exhaust unit Exhaust fan mm mm 0402 560 738 0404 800 738 0604 800 1058 0606 1120 1058 0806 1120 1378 0808 1440 1378 1008 1440 1698 1010 1760 1698 m3/s mm 0.58 660 1.17 820 1.75 900 2.63 1060 3.5 1140 4.67 1220 5.83 1300 7.29 1540 m3/s kW mm 0.58 24.5 1380 1.17 48.5 1540 1.75 74.5 1620 2.63 112.3 1780 3.5 140.1 1860 4.67 188.5 1940 5.83 243.7 2180 7.29 304.4 2340 m3/s kW kW mm 0.54 22.5 10 1860 1 42.6 19.2 2020 1.72 73.3 33.1 2100 2.58 110 49.9 2260 3.2 132.7 63 2340 4.36 181.1 86.2 2420 5.73 241 112.3 2660 7.1 300.2 139.7 2820 m3/s kW kW mm 0.54 22.5 10 2180 1 42.6 19.2 2340 1.72 73.3 33.1 2420 2.58 110 49.9 2660 3.2 132.7 63 2740 4.36 181.1 86.2 3060 5.73 241 112.3 3220 7.1 300.2 139.7 3460 m3/s kW kW mm mm mm 0.54 22.5 10 3220 1 42.6 19.2 3540 1.72 73.3 33.1 3700 2.58 110 49.9 4180 3.2 132.7 63 4340 4.36 181.1 86.2 4820 2450 2370 5.73 241 112.3 5140 2530 2610 7.1 300.2 139.7 5700 2930 2770 kW kW kW kW kW 7.5 11.3 15 18.8 30 7.5 15 22.5 30 37.5 18 27 36 45 54 27 36 54 63 81 36 48 72 84 108 36 60 96 120 144 45 75 120 150 180 60 90 150 180 225 kW 6.4 12.2 20.9 31.4 38.8 53 69.6 86.5 2 – Supply unit heating Return air damper G4+F7 filter Heating coil 2 rows Supply fan 3 – Supply unit heating and cooling Return air damper G4 + F7 filters Heating coil 2 rows 6
