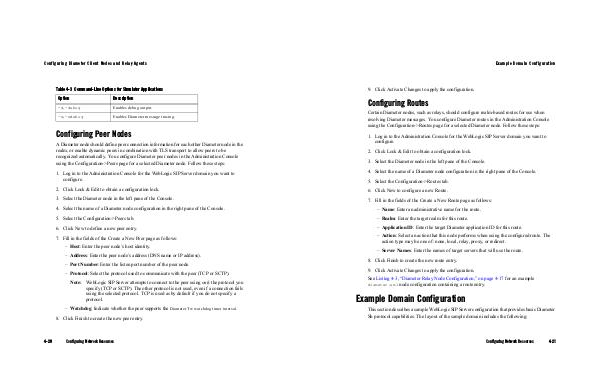

Conf ig ur in g Di amet er Cli ent Nod es an d Re lay Ag ent s Table 4-3 Command-Line Options for Simulator Applications Option Description -d , -debug Enables debug output. -m , -mdebug Enables Diameter message tracing. Configuring Peer Nodes A Diameter node should define peer connection information for each other Diameter node in the realm, or enable dynamic peers in combination with TLS transport to allow peers to be recognized automatically. You configure Diameter peer nodes in the Administration Console using the Configuration->Peers page for a selected Diameter node. Follow these steps: 1. Log in to the Administration Console for the WebLogic SIP Server domain you want to configure. 2. Click Lock & Edit to obtain a configuration lock. 3. Select the Diameter node in the left pane of the Console. 4. Select the name of a Diameter node configuration in the right pane of the Console. 5. Select the Configuration->Peers tab. 6. Click New to define a new peer entry. 7. Fill in the fields of the Create a New Peer page as follows: – Host: Enter the peer node’s host identity. – Address: Enter the peer node’s address (DNS name or IP address). – Port Number: Enter the listen port number of the peer node. – Protocol: Select the protocol used to communicate with the peer (TCP or SCTP). Note: WebLogic SIP Server attempts to connect to the peer using only the protocol you specify (TCP or SCTP). The other protocol is not used, even if a connection fails using the selected protocol. TCP is used as by default if you do not specify a protocol. – Watchdog: Indicate whether the peer supports the Diameter Tw watchdog timer interval. 8. Click Finish to create the new peer entry. 4-20 Configuring Network Resources
