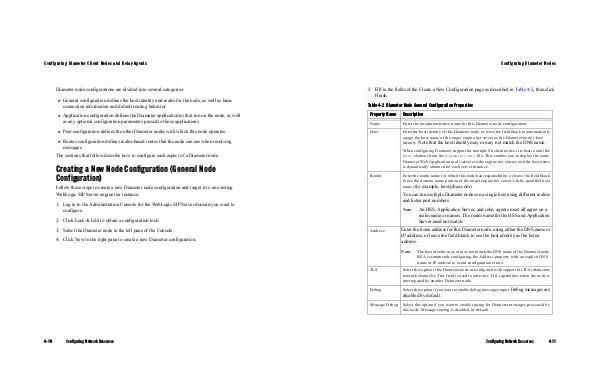

Conf ig ur in g Di amet er Cli ent Nod es an d Re lay Ag ent s
Diameter node configurations are divided into several categories:
z General configuration defines the host identity and realm for the node, as well as basic
connection information and default routing behavior.
z Application configuration defines the Diameter application(s) that run on the node, as well
as any optional configuration parameters passed to those applications.
z Peer configuration defines the other Diameter nodes with which this node operates.
z Routes configuration defines realm-based routes that the node can use when resolving
messages.
The sections that follow describe how to configure each aspect of a Diameter node.
Creating a New Node Configuration (General Node
Configuration)
Follow these steps to create a new Diameter node configuration and target it to an existing
WebLogic SIP Server engine tier instance:
1. Log in to the Administration Console for the WebLogic SIP Server domain you want to
configure.
2. Click Lock & Edit to obtain a configuration lock.
3. Select the Diameter node in the left pane of the Console.
4. Click New in the right pane to create a new Diameter configuration.
