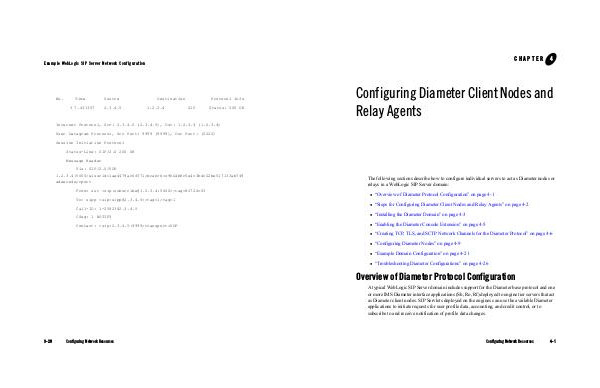

CHAPTER
4
Configuring Diameter Client Nodes and
Relay Agents
The following sections describe how to configure individual servers to act as Diameter nodes or
relays in a WebLogic SIP Server domain:
z “Overview of Diameter Protocol Configuration” on page 4-1
z “Steps for Configuring Diameter Client Nodes and Relay Agents” on page 4-2
z “Installing the Diameter Domain” on page 4-3
z “Enabling the Diameter Console Extension” on page 4-5
z “Creating TCP, TLS, and SCTP Network Channels for the Diameter Protocol” on page 4-6
z “Configuring Diameter Nodes” on page 4-9
z “Example Domain Configuration” on page 4-21
z “Troubleshooting Diameter Configurations” on page 4-26
Overview of Diameter Protocol Configuration
A typical WebLogic SIP Server domain includes support for the Diameter base protocol and one
or more IMS Diameter interface applications (Sh, Ro, Rf) deployed to engine tier servers that act
as Diameter client nodes. SIP Servlets deployed on the engines can use the available Diameter
applications to initiate requests for user profile data, accounting, and credit control, or to
subscribe to and receive notification of profile data changes.
