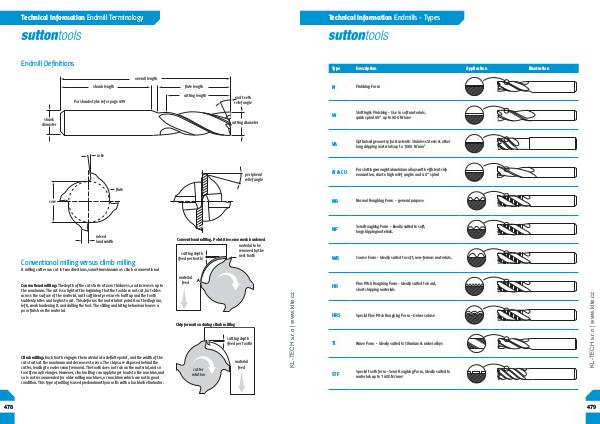

Technical Information Endmills - Types
Description
N Finishing Form
W Slotting & Finishing - Use in soft materials,
quick spiral 45° up to 600 N/mm 2
VA Optimised geometry for Austentic Stainless Steels & other
long chipping materials up to 1000 N/mm 2
AI & CU For slotting wrought aluminium alloys with efficient chip
evacuation, due to high relief angles and 40° spiral
NR Normal Roughing Form - general purpose
NF Semi Roughing Form - Ideally suited to soft,
long chipping materials.
WR Coarse Form - ideally suited to soft, non-ferrous materials.
HR Fine Pitch Roughing Form - ideally suited to hard,
short chipping materials
HRS Special Fine Pitch Roughing Form - Universal use
Ti Wave Form - ideally suited to titanium & nickel alloys
STF Special tooth form - Semi Roughing Form, ideally suited to
materials up to 1400 N/mm 2
Application
Illustration
www.klte.cz
Type
479
