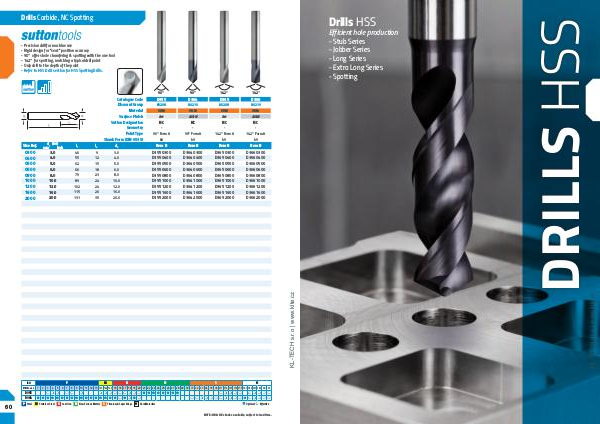

Drills Carbide, NC Spotting
- Precision drill for machine use
- Rigid design for “seat” position accuracy
- 90° offers hole chamfering & spotting with the one tool
- 142° for spotting, matching a typical drill point
- Only drill to the depth of the point
- Refer to HSS Drill section for HSS Spotting Drills.
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Point Type
Shank Form (DIN 6535)
d 1 (h6)
mm
inch
3.0
4.0
5.0
6.0
8.0
10.0
12.0
16.0
20.0
Size Ref.
90° 142° 142°
D364 D365 D366
A0208 A0210 A0208 A0210
VHM VHM VHM VHM
Brt AlCrN Brt AlCrN
NC NC NC NC
- - - -
90° Form A 90° Form A 142° Form A 142° Form A
h9 h9 h9 h9
l 1 l 2 d 2 Item # Item # Item # Item #
46 9 3.0 55 12 4.0 62 15 5.0 66 18 6.0 79 23 8.0 89 24 10.0 102 24 12.0 115 26 16.0 131 35 20.0 D355 0300
D355 0400
D355 0500
D355 0600
D355 0800
D355 1000
D355 1200
D355 1600
D355 2000 D364 0300
D364 0400
D364 0500
D364 0600
D364 0800
D364 1000
D364 1200
D364 1600
D364 2000 D365 0300
D365 0400
D365 0500
D365 0600
D365 0800
D365 1000
D365 1200
D365 1600
D365 2000 D366 0300
D366 0400
D366 0500
D366 0600
D366 0800
D366 1000
D366 1200
D366 1600
D366 2000
www.klte.cz
0300
0400
0500
0600
0800
1000
1200
1600
2000
90° D355
P
60
P
Steel
M
8
K
N
M
Stainless Steel
K
Cast Iron
S
H
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
N
Non-Ferrous Metals
S
Titanium & Super Alloys
H
Hard Materials
7
6
5
4
3
D355
D364
2
1
ISO
VDI 3323
• Optimal • Effective
NOTE: HB & HE shanks available, subject to lead time.
