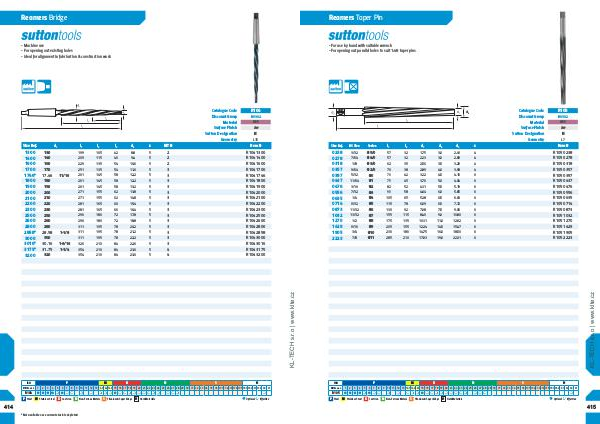

Reamers Taper Pin
- For use by hand with suitable wrench
- For opening out parallel holes to suit 1:48 taper pins
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
d 3
Size Ref. BS Size Series
0238
0278
0318
0357
0397
0437
0476
0556
0635
0714
0873
1032
1270
1429
1905
2223 3/32 #5/0
#4/0
#3/0
#2/0
#0
#1
#2
#3
#4
#5
#6
#7
#8
#9
#10
#11
7/64
1/8
9/64
5/32
11/64
3/16
7/32
1/4
9/32
11/32
13/32
1/2
9/16
3/4
B0302
HSS
Brt
N
L7
l 1 l 2 d 1 d 2 d 3 z Item #
57 32 1.75 3.0 2.41 4 57 32 2.23 3.0 2.89 4 62 35 2.56 3.5 3.29 4 70 38 2.89 4.0 3.68 4 70 42 3.22 4.5 4.10 6 75 45 3.70 5.0 4.64 6 82 52 4.11 5.5 5.19 6 R105 0238
R105 0278
R105 0318
R105 0357
R105 0397
R105 0437
R105 0476
R105 0556
R105 0635
R105 0714
R105 0873
R105 1032
R105 1270
R105 1429
R105 1905
R105 2223
90 58 4.64 6.0 5.85 6
105 65 5.28 6.5 6.63 6
115 78 6.09 6.5 7.72 6
130 92 7.08 7.5 9.00 6
155 115 8.40 9.0 10.80 6
175 135 10.11 11.0 12.92 6
205 155 12.24 14.5 15.47 6
230 180 14.75 16.0 18.50 6
285 210 17.93 19.0 22.31 6
