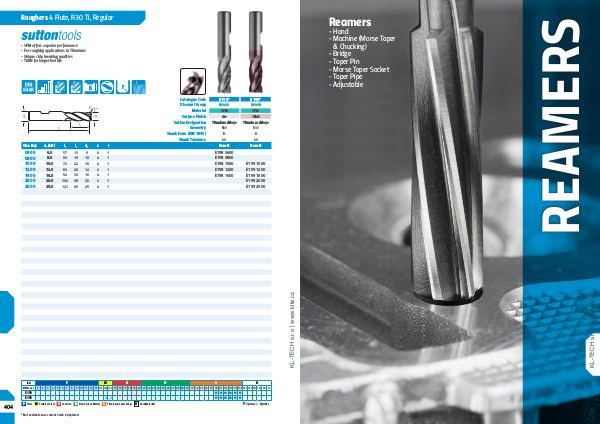

Roughers 4 Flute, R30 Ti, Regular
- SPM offers superior performance
- For roughing applications in Titaniums
- Unique chip breaking qualities
- TiAlN for longer tool life
r
B
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 1835)
Shank Tolerance
Size Ref.
d 1 (k8)
0600
0800
1000
1200
1600
2000
2500
E159*
B0406 B0408
SPM SPM
Brt TiAlN
Titanium Alloys Titanium Alloys
R30 R30
B B
h6 h6
Item #
l 1 l 2 d 2 z r Item #
57 13 6 4 1 69 19 10 4 1 72 22 10 4 1 83 26 12 4 1 E158 0600
E158 0800
E158 1000
E158 1200
E158 1600
92 32 16 4 1
104 38 20 4 1
121 45 25 4 1
E159 1000
E159 1200
E159 1600
E159 2000
E159 2500
www.klte.cz
6.0
8.0
10.0
12.0
16.0
20.0
25.0
E158*
P
ISO
1
VDI 3323
2
3
4
5
6
7
M
8
P
Steel
N
S
H
M
Stainless Steel
K
Cast Iron
N
* Not available once current stock is depleted.
Non-Ferrous Metals
S
Titanium & Super Alloys
E158
E159
404
K
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
H
Hard Materials
• Optimal • Effective
