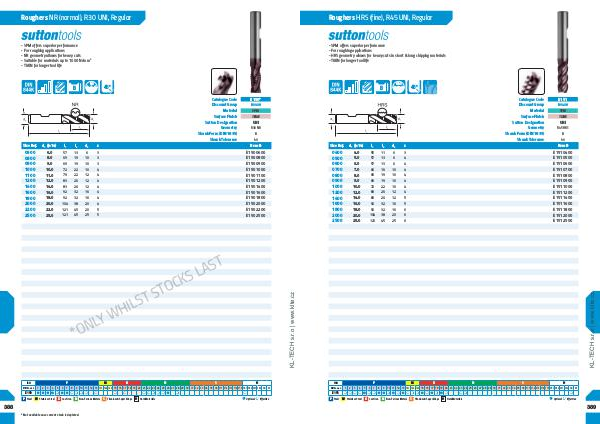

Roughers HRS (fine), R45 UNI, Regular
- SPM offers superior performance
- For roughing applications
- HRS geometry allows for heavy cuts in short & long chipping materials
- TiAlN for longer tool life
HRS
B
45º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 1835)
Shank Tolerance
Size Ref.
d 1 (js14)
0400
0500
0600
0700
0800
0900
1000
1200
1400
1600
1800
2000
2500
SPM
TiAlN
UNI
R45 HRS
B
h6
l 1 l 2 d 2 z Item #
55 11 6 3 57 13 6 4 57 13 6 4 66 16 10 4 69 19 10 4 69 19 10 4 72 22 10 4 83 26 12 4 83 26 12 5 92 32 16 5 92 32 16 6 104 38 20 6 121 45 25 6 E151 0400
E151 0500
E151 0600
E151 0700
E151 0800
E151 0900
E151 1000
E151 1200
E151 1400
E151 1600
E151 1800
E151 2000
E151 2500
www.klte.cz
4.0
5.0
6.0
7.0
8.0
9.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
E151
B0408
P
Steel
3
4
5
6
7
M
8
K
N
M
Stainless Steel
K
Cast Iron
S
H
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
E151
P
2
N
Non-Ferrous Metals
S
Titanium & Super Alloys
H
Hard Materials
1
ISO
VDI 3323
• Optimal • Effective
