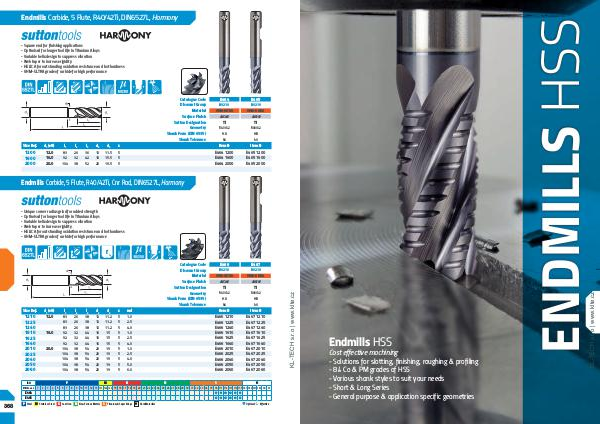

Endmills Carbide, 5 Flute, R40 / 42Ti, DIN6527L, Harmony
- Square end for finishing applications- Optimised for longer tool life in Titanium Alloys- Variable helix design to suppress vibration- Web taper to increase rigidity- HELICA for outstanding oxidation resistance and hot hardness- VHM-ULTRA grade of carbide for high performance
+
2 º
Catalogue Code
E464
E465
Discount Group
B0210
B0210
Material
VHM-ULTRA
VHM-ULTRA
Surface Finish
AlCrN
AlCrN
Sutton Designation
Ti
Ti
Geometry
R40 / 42
R40 / 42
Shank Form( DIN 6535)
HA
HB
Shank Tolerance
h6
h6
Size Ref.
d 1
( e8)
l 1
l 2
l 3
d 2
d 3
z
Item #
Item #
1200
12.0
83
26
36
12
11.5
5
E464 1200
E465 1200
1600
16.0
92
32
42
16
15.5
5
E464 1600
E465 1600
2000
20.0
104
38
52
20
19.5
5
E464 2000
E465 2000
Endmills Carbide, 5 Flute, R40 / 42Ti, Cnr Rad, DIN6527L, Harmony
- Unique corner radius grind for added strength- Optimised for longer tool life in Titanium Alloys- Variable helix design to suppress vibration- Web taper to increase rigidity- HELICA for outstanding oxidation resistance and hot hardness- VHM-ULTRA grade of carbide for high performance r +
2 º
Catalogue Code
E466
E467
Discount Group
B0210
B0210
Material
VHM-ULTRA
VHM-ULTRA
Surface Finish
AlCrN
AlCrN
Sutton Designation
Ti
Ti
Geometry
R40 / 42
R40 / 42
Shank Form( DIN 6535)
HA
HB
Shank Tolerance
h6
h6
Size Ref.
d 1
( e8)
l 1
l 2
l 3
d 2
d 3
z
rad
Item #
Item #
1210
12.0
83
26
38
12
11.2
5
1.0
E466 1210
E467 1210
1225
83
26
38
12
11.2
5
2.5
E466 1225
E467 1225
1240
83
26
38
12
11.2
5
4.0
E466 1240
E467 1240
1610
16.0
92
32
44
16
15
5
1.0
E466 1610
E467 1610
1625
92
32
44
16
15
5
2.5
E466 1625
E467 1625
1640
92
32
44
16
15
5
4.0
E466 1640
E467 1640
2010
20.0
104
38
54
20
19
5
1.0
E466 2010
E467 2010
2025
104
38
54
20
19
5
2.5
E466 2025
E467 2025
2040
104
38
54
20
19
5
4.0
E466 2040
E467 2040
2050
104
38
54
20
19
5
5.0
E466 2050
E467 2050
2060
104
38
54
20
19
5
6.0
E466 2060
E467 2060
KL-TECH s. r. o | www. klte. cz
368
ISO
VDI 3323
E464 E466
1
P 2 3 4 5 6 7 8 9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
P Steel M Stainless Steel K Cast Iron N Non-Ferrous Metals S Titanium & Super Alloys H Hard Materials
M K
N S
H 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
• •
• •
• •
• •
• •
• •
• Optimal • Effective
