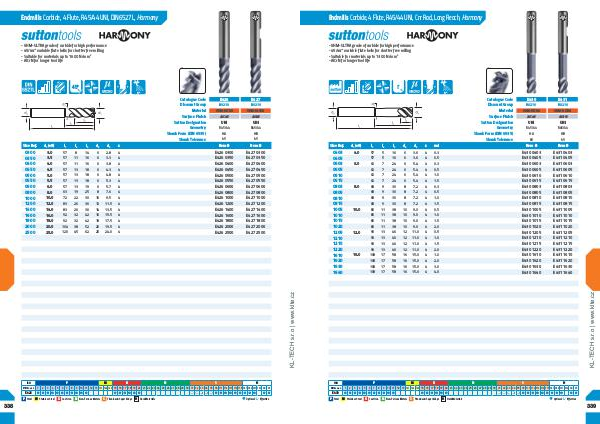

Endmills Carbide, 4 Flute, R45/44 UNI, DIN6527L, Harmony
- VHM-ULTRA grade of carbide for high performance
- 45/44° variable flute helix for chatter free milling
- Suitable for materials up to 1600 N/mm 2
- AlCrN for longer tool life
+
45º
6º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
l 1
3.0
3.5
4.0
4.5
5.0
5.5
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0 E427
B0210
VHM-ULTRA VHM-ULTRA
AlCrN AlCrN
UNI UNI
R45/44 R45/44
HA HB
h5 h5
l 2 l 3 d 2 d 3 z Item # Item #
57 8 14 6 2.8 4 57 11 16 6 3.3 4 57 11 16 6 3.8 4 57 13 18 6 4.3 4 57 13 18 6 4.8 4 57 13 18 6 5.3 4 57 13 19 6 5.7 4 63 19 25 8 7.6 4 72 22 30 10 9.5 4 83 26 36 12 11.5 4 83 26 36 14 13.5 4 92 32 42 16 15.5 4 92 32 42 18 17.5 4 104 38 52 20 19.5 4 120 45 62 25 24.0 4 E426 0300
E426 0350
E426 0400
E426 0450
E426 0500
E426 0550
E426 0600
E426 0800
E426 1000
E426 1200
E426 1400
E426 1600
E426 1800
E426 2000
E426 2500 E427 0300
E427 0350
E427 0400
E427 0450
E427 0500
E427 0550
E427 0600
E427 0800
E427 1000
E427 1200
E427 1400
E427 1600
E427 1800
E427 2000
E427 2500
www.klte.cz
0300
0350
0400
0450
0500
0550
0600
0800
1000
1200
1400
1600
1800
2000
2500
d 1 (e8) E426 B0210
P
338
Steel
4
5
6
7
M
8
M
Stainless Steel
K
Cast Iron
K
N
S
H
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
N
Non-Ferrous Metals
S
Titanium & Super Alloys
H
Hard Materials
3
E426
P
2
1
ISO
VDI 3323
• Optimal • Effective
