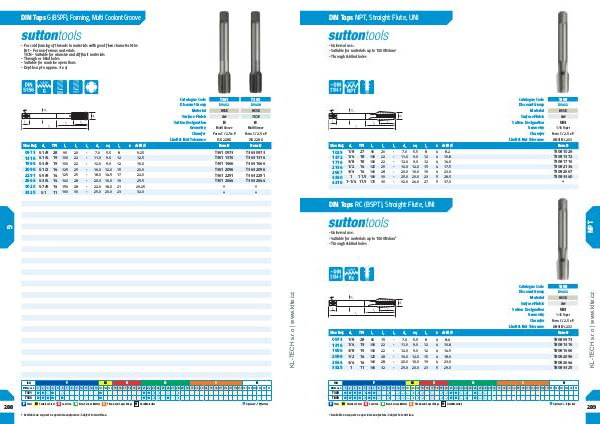

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Page 268

DIN Taps G( BSPF), Forming, Multi Coolant Groove
- For cold forming of threads in materials with good flow characteristics Brt- For non-ferrous materials TiCN- Suitable for abrasive and difficult materials- Through or blind holes- Suitable for machine operations- Depths up to approx. 3 x d 1
Catalogue Code
T361
T363
Discount Group
D0402
D0408
Material
HSSE
HSSE
Surface Finish
Brt
TiCN
Sutton Designation
N
N
Geometry
Multi Groove
Multi Groove
Chamfer
Form C / 2.5 x P
Form C / 2.5 x P
Limit & Nut Tolerance
ISO 228 X
ISO 228 X
Size Ref.
d 1
TPI
l 1
l 2
l 3
d 2
sq
l 4
z
drill ø
Item #
Item #
0973
G 1 / 8
28
90
20
-
7.0
5.5
8
9.25
T361 0973
T363 0973
1316
G 1 / 4
19
100
22
-
11.0
9.0
12
12.5
T361 1316
T363 1316
1666
G 3 / 8
19
100
22
-
12.0
9.0
12
16.0
T361 1666
T363 1666
2096
G 1 / 2
14
125
25
-
16.0
12.0
15
20.0
T361 2096
T363 2096
2291
G 5 / 8
14
125
25
-
18.0
14.5
17
22.0
T361 2291
T363 2291
2644
G 3 / 4
14
140
28
-
20.0
16.0
19
25.5
T361 2644
T363 2644
3020
G 7 / 8
14
150
28
-
22.0
18.0
21
29.25
• •
3325
G 1
11
160
30
-
25.0
20.0
23
32.0
• •
G
KL-TECH s. r. o | www. klte. cz
288
ISO
VDI 3323
T361 T363
1 2
3 4 5
• •
• •
• •
• •
• •
P 6 7 8 9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
• •
P Steel M Stainless Steel K Cast Iron N Non-Ferrous Metals S Titanium & Super Alloys H Hard Materials
• Available on request as special manufacture. Subject to lead time.
M K
• •
• •
• •
• •
N
• •
• •
S
H 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
• Optimal • Effective
