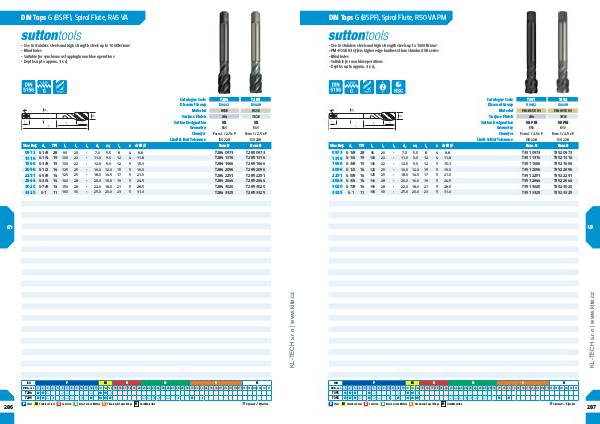

DIN Taps G (BSPF), Spiral Flute, R45 VA
- Use in stainless steels and high strength steels up to 1000N/mm 2
- Blind holes
- Suitable for synchronous tapping in machine operations
- Depths up to approx. 3 x d 1
Size Ref.
0973
1316
1666
2096
2291
2644
3020
3325
d 1 TPI l 1 l 2 l 3 d 2 sq l 4 z drill ø
G 1/8
G 1/4
G 3/8
G 1/2
G 5/8
G 3/4
G 7/8
G 1 28
19
19
14
14
14
14
11 90 20 - 7.0 5.5 8 4 8.8
100 22 - 11.0 9.0 12 4 11.8
100 22 - 12.0 9.0 12 5 15.3
125 25 - 16.0 12.0 15 5 19.0
125 25 - 18.0 14.5 17 5 21.0
140 28 - 20.0 16.0 19 5 24.5
150 28 - 22.0 18.0 21 5 28.5
160 30 - 25.0 20.0 23 5 31.0
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Chamfer
Limit & Nut Tolerance
T284 T285
D0402 D0408
HSSE HSSE
Blu TiCN
VA VA
R45 R45
Form C / 2.5 x P Form C / 2.5 x P
ISO 228 ISO 228
Item # Item #
T284 0973
T284 1316
T284 1666
T284 2096
T284 2291
T284 2644
T284 3020
T284 3325 T285 0973
T285 1316
T285 1666
T285 2096
T285 2291
T285 2644
T285 3020
T285 3325
