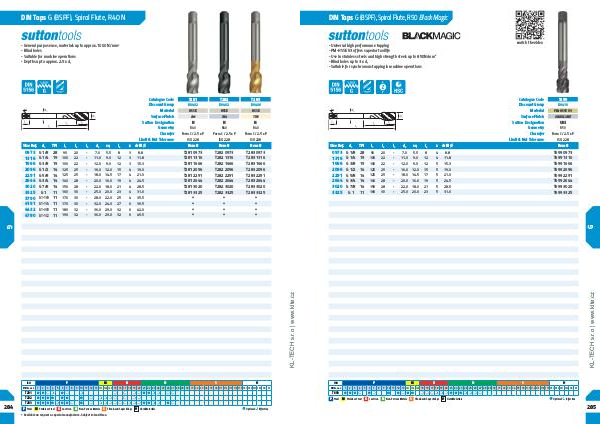

DIN Taps G( BSPF), Spiral Flute, R40 N
- General purpose use, materials up to approx. 1000 N / mm 2- Blind holes- Suitable for machine operations- Depths up to approx. 2.5 x d 1
Catalogue Code
T281
T282
T283
Discount Group
D0402
D0402
D0406
Material
HSSE
HSSE
HSSE
Surface Finish
Brt
Blu
TiN
Sutton Designation
N
N
N
Geometry
R40
R40
R40
Chamfer
Form C / 2.5 x P
Form C / 2.5 x P
Form C / 2.5 x P
Limit & Nut Tolerance
ISO 228
ISO 228
ISO 228
Size Ref.
d 1
TPI
l 1
l 2
l 3
d 2
sq
l 4
z
drill ø
Item #
Item #
Item #
0973
G 1 / 8
28
90
20
-
7.0
5.5
8
3
8.8
T281 0973
T282 0973
T283 0973
1316
G 1 / 4
19
100
22
-
11.0
9.0
12
3
11.8
T281 1316
T282 1316
T283 1316
1666
G 3 / 8
19
100
22
-
12.0
9.0
12
3
15.3
T281 1666
T282 1666
T283 1666
2096
G 1 / 2
14
125
25
-
16.0
12.0
15
4
19.0
T281 2096
T282 2096
T283 2096
2291
G 5 / 8
14
125
25
-
18.0
14.5
17
4
21.0
T281 2291
T282 2291
T283 2291
2644
G 3 / 4
14
140
28
-
20.0
16.0
19
4
24.5
T281 2644
T282 2644
T283 2644
3020
G 7 / 8
14
150
28
-
22.0
18.0
21
4
28.5
T281 3020
T282 3020
T283 3020
3325
G 1
11
160
30
-
25.0
20.0
23
4
31.0
T281 3325
T282 3325
T283 3325
3790
G 1-1 / 8
11
170
30
-
28.0
22.0
25
4
35.5
• • •
4191
G 1-1 / 4
11
170
30
-
32.0
24.0
27
6
39.5
• • •
4432
G 1-3 / 8
11
180
32
-
36.0
29.0
32
6
42.0
• • •
4780
G 1-1 / 2
11
190
32
-
36.0
29.0
32
6
45.5
• • •
G
KL-TECH s. r. o | www. klte. cz
ISO
VDI 3323
T281 T282 T283
1 2
3 4
• • •
• • •
• • •
• • •
•
• • •
• • •
•
5 6
P 7
8 9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
• • •
284
P Steel M Stainless Steel K Cast Iron N Non-Ferrous Metals S Titanium & Super Alloys H Hard Materials
• •
• Available on request as special manufacture. Subject to lead time.
M K
• •
• •
• •
• • •
•
• • •
•
• • •
• • •
• •
• •
• •
• •
N
• •
• •
S
H 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
• Optimal • Effective
