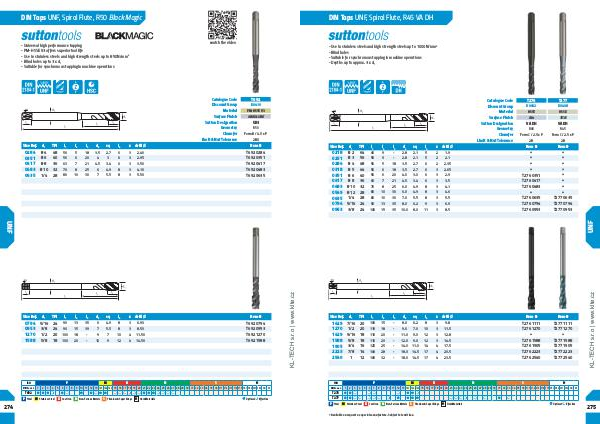

DIN Taps UNF, Spiral Flute, R50 Black Magic
watch the video
- Universal high performance tapping
- PM-HSSE V3 offers superior tool life
- Use in stainless steels and high strength steels up to 850N/mm 2
- Blind holes up to 3 x d 1
- Suitable for synchronous tapping in machine operations
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Chamfer
Limit & Nut Tolerance
T692
D0410
PM-HSSE V3
HARDLUBE
UNI
R50
Form B / 4.5 x P
2BX
d 1 TPI l 1 l 2 l 3 d 2 sq l 4 z drill ø 0284
0351
0417
0483
0635 # 4
# 6
# 8
# 10
1/4 48
40
36
32
28 56 5 18 3.5 2.7 6 3 2.40 56 6 20 4 3 6 3 2.95 63 7 21 4.5 3.4 6 3 3.50 70 8 25 6 4.9 8 3 4.10 80 10 30 7 5.5 8 3 5.50 T692 0284
T692 0351
T692 0417
T692 0483
T692 0635
Size Ref. d 1 TPI l 1 l 2 l 3 d 2 sq l 4 z drill ø Item #
90 13 35 6 4.9 8 3 6.90 90 15 39 7 5.5 8 3 8.50 100 18 - 9 7 10 4 11.50 100 20 - 12 9 12 4 14.50 T692 0794
T692 0953
T692 1270
T692 1588
Size Ref.
Item #
24
24
20
18
P
274
Steel
4
M
Stainless Steel
5
6
7
M
8
K
Cast Iron
K
N
S
H
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
N
3
T692
P
2
1
ISO
VDI 3323
Non-Ferrous Metals
S
5/16
3/8
1/2
5/8
Titanium & Super Alloys
H
Hard Materials
• Optimal • Effective
www.klte.cz
0794
0953
1270
1588
