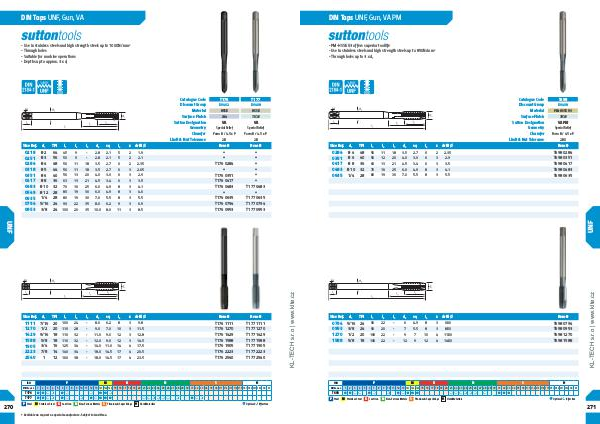

DIN Taps UNF, Gun, VA
- Use in stainless steels and high strength steels up to 1000N/mm 2
- Through holes
- Suitable for machine operations
- Depths up to approx. 3 x d 1
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Chamfer
Limit & Nut Tolerance
T176 T177
D0402 D0408
HSSE HSSE
Blu TiCN
VA VA
Special Relief Special Relief
Form B / 4.5 x P Form B / 4.5 x P
2B 2B
Item # Item #
•
•
•
•
•
•
T177 0483
•
T177 0635
T177 0794
T177 0953
d 1 TPI l 1 l 2 l 3 d 2 sq l 4 z drill ø 0218
0251
0284
0318
0351
0417
0483
0549
0635
0794
0953 # 2
# 3
# 4
# 5
# 6
# 8
# 10
# 12
1/4
5/16
3/8 64
56
48
44
40
36
32
28
28
24
24 45 9 - 2.8 2.1 5 2 1.9 50 9 - 2.8 2.1 5 2 2.1 56 11 18 3.5 2.7 6 2 2.35 56 11 18 3.5 2.7 6 3 2.65 56 13 20 4.0 3.0 6 3 2.9 63 13 21 4.5 3.4 6 3 3.5 70 16 25 6.0 4.9 8 3 4.1 80 19 30 6.0 4.9 8 3 4.6 80 19 30 7.0 5.5 8 3 5.5 90 22 35 8.0 6.2 9 3 6.9 100 20 35 10.0 8.0 11 3 8.5 •
•
