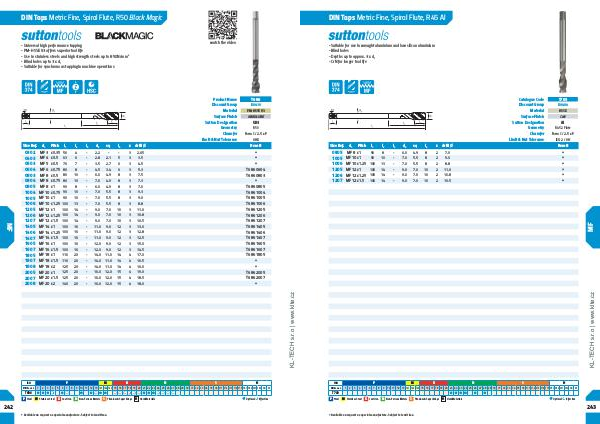

DIN Taps Metric Fine, Spiral Flute, R45 Al
- Suitable for use in wrought aluminium and low silicon aluminium
- Blind holes
- Depths up to approx. 3 x d 1
- CrN for longer tool life
Pitch l 1 l 2 l 3 d 2 sq l 4 z drill ø
MF 8 x 1
MF 10 x 1
MF 10 x 1.25
MF 12 x 1
MF 12 x 1.25
MF 12 x 1.5 90 8 - 6.0 4.9 8 2 7.0
90 10 - 7.0 5.5 8 2 9.0
100 13 - 7.0 5.5 8 2 8.8
100 14 - 9.0 7.0 10 2 11.0
100 14 - 9.0 7.0 10 2 10.8
100 14 - 9.0 7.0 10 2 10.5
Size Ref.
d 1
T703
D0404
HSSE
CrN
Al
R45 2 Flute
Form C / 2.5 x P
ISO 2 / 6H
Item #
•
•
•
•
•
•
