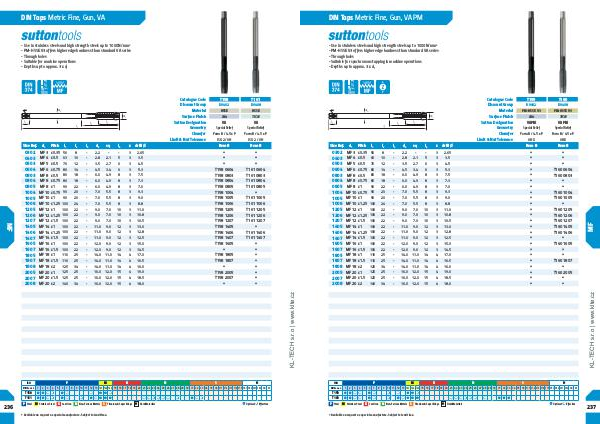

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Page 216

DIN Taps Metric Fine, Gun, VA
- Use in stainless steels and high strength steels up to 1000N/mm 2
- PM-HSSE V3 offers higher edge hardness than standard VA series
- Through holes
- Suitable for machine operations
- Depths up to approx. 3 x d 1
d 1 Pitch l 1 l 2 l 3 d 2 sq l 4 z drill ø
MF 3
MF 4
MF 5
MF 6
MF 8
MF 8
MF 8
MF 10
MF 10
MF 10
MF 12
MF 12
MF 12
MF 14
MF 14
MF 14
MF 16
MF 16
MF 18
MF 18
MF 18
MF 20
MF 20
MF 20 x 0.35
x 0.5
x 0.5
x 0.75
x 0.5
x 0.75
x 1
x 0.75
x 1
x 1.25
x 1
x 1.25
x 1.5
x 1
x 1.25
x 1.5
x 1
x 1.5
x 1
x 1.5
x 2
x 1
x 1.5
x 2 56 8 - 2.2 - - 3 2.65
63 10 - 2.8 2.1 5 3 3.5
70 12 - 3.5 2.7 6 3 4.5
80 14 - 4.5 3.4 6 3 5.3
80 18 - 6.0 4.9 8 3 7.5
80 18 - 6.0 4.9 8 3 7.3
90 22 - 6.0 4.9 8 3 7.0
90 20 - 7.0 5.5 8 3 9.3
90 20 - 7.0 5.5 8 3 9.0
100 24 - 7.0 5.5 8 3 8.8
100 22 - 9.0 7.0 10 3 11.0
100 22 - 9.0 7.0 10 3 10.8
100 22 - 9.0 7.0 10 3 10.5
100 22 - 11.0 9.0 12 3 13.0
100 22 - 11.0 9.0 12 3 12.8
100 22 - 11.0 9.0 12 3 12.5
100 22 - 12.0 9.0 12 3 15.0
100 22 - 12.0 9.0 12 3 14.5
110 25 - 14.0 11.0 14 4 17.0
110 25 - 14.0 11.0 14 4 16.5
125 34 - 14.0 11.0 14 4 16.0
125 25 - 16.0 12.0 15 4 19.0
125 25 - 16.0 12.0 15 4 18.5
140 34 - 16.0 12.0 15 4 18.0
Size Ref.
T158 T161
D0402 D0408
HSSE HSSE
Blu TiCN
VA VA
Special Relief Special Relief
Form B / 4.5 x P Form B / 4.5 x P
ISO 2 / 6H ISO 2 / 6H
Item # Item #
•
•
•
T158 0604
T158 0803
T158 0804
T158 0805
T158 1004
T158 1005
T158 1006
T158 1205
T158 1206
T158 1207
T158 1405
T158 1406
T158 1407
T158 1605
•
T158 1805
T158 1807
•
T158 2005
T158 2007
• •
•
•
T161 0604
T161 0803
T161 0804
T161 0805
•
T161 1005
T161 1006
T161 1205
T161 1206
T161 1207
•
T161 1406
T161 1407
•
•
•
•
•
•
•
•
www.klte.cz
0302
0403
0503
0604
0803
0804
0805
1004
1005
1006
1205
1206
1207
1405
1406
1407
1605
1607
1805
1807
1808
2005
2007
2008
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Chamfer
Limit & Nut Tolerance
P
236
P
Steel
M
Stainless Steel
M
K
Cast Iron
K
N
S
H
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
N
Non-Ferrous Metals
S
• Available on request as special manufacture. Subject to lead time.
Titanium & Super Alloys
H
Hard Materials
8
7
6
5
4
3
T158
T161
2
1
ISO
VDI 3323
• Optimal • Effective
