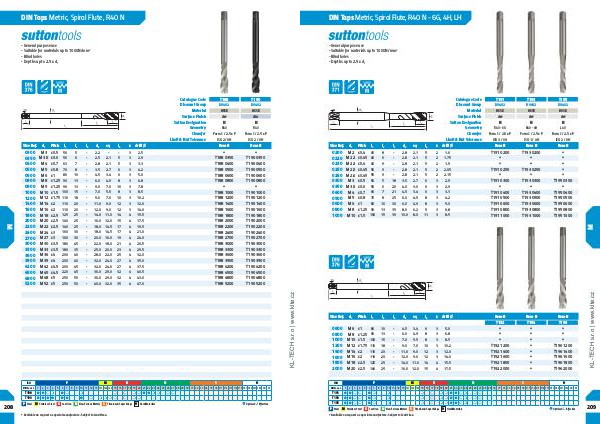

DIN Taps Metric, Spiral Flute, R40 N
- General purpose use
- Suitable for materials up to 1000N/mm 2
- Blind holes
- Depths up to 2.5 x d 1
Size Ref.
d 1
l 2 l 3 d 2 sq l 4 z drill ø
5 - 2.2 - - 3 2.5
56 6 - 2.5 2.1 5 3 2.9
63 7 - 2.8 2.1 5 3 3.3
70 8 - 3.5 2.7 6 3 4.2
80 10 - 4.5 3.4 6 3 5.0
90 13 - 6.0 4.9 8 3 6.8
90 13 - 9.0 7.0 10 3 7.8
100 15 - 7.0 5.5 8 3 8.5
110 18 - 9.0 7.0 10 3 10.2
110 20 - 11.0 9.0 12 3 12.0
110 20 - 12.0 9.0 12 3 14.0
125 25 - 14.0 11.0 14 4 15.5
140 25 - 16.0 12.0 15 4 17.5
140 25 - 18.0 14.5 17 4 19.5
160 30 - 18.0 14.5 17 4 21.0
160 30 - 20.0 16.0 19 4 24.0
180 45 - 22.0 18.0 21 4 26.5
180 35 - 25.0 20.0 23 4 29.5
200 40 - 28.0 22.0 25 4 32.0
200 40 - 32.0 24.0 27 4 35.0
200 45 - 32.0 24.0 27 4 37.5
220 45 - 36.0 29.0 32 4 40.5
250 50 - 36.0 29.0 32 4 43.0
250 50 - 40.0 32.0 35 4 47.0
T188 T190
D0402 D0402
HSSE HSSE
Brt Blu
N N
R40 R40
Form C / 2.5 x P Form C / 2.5 x P
ISO 2 / 6H ISO 2 / 6H
Item # Item #
•
T188 0350
T188 0400
T188 0500
T188 0600
T188 0800
•
T188 1000
T188 1200
T188 1400
T188 1600
T188 1800
T188 2000
T188 2200
T188 2400
T188 2700
T188 3000
T188 3300
T188 3600
T188 3900
T188 4200
T188 4500
T188 4800
T188 5200 •
T190 0350
T190 0400
T190 0500
T190 0600
T190 0800
•
T190 1000
T190 1200
T190 1400
T190 1600
T190 1800
T190 2000
T190 2200
T190 2400
T190 2700
T190 3000
T190 3300
T190 3600
T190 3900
T190 4200
T190 4500
T190 4800
T190 5200
www.klte.cz
l 1 56
Pitch
0300 M 3 x 0.5
0350 M 3.5 x 0.6
0400 M 4 x 0.7
0500 M 5 x 0.8
0600 M 6 x 1
0800 M 8 x 1.25
0900 M 9 x 1.25
1000 M 10 x 1.5
1200 M 12 x 1.75
1400 M 14 x 2
1600 M 16 x 2
1800 M 18 x 2.5
2000 M 20 x 2.5
2200 M 22 x 2.5
2400 M 24 x 3
2700 M 27 x 3
3000 M 30 x 3.5
3300 M 33 x 3.5
3600 M 36 x 4
3900 M 39 x 4
4200 M 42 x 4.5
4500 M 45 x 4.5
4800 M 48 x 5
5200 M 52 x 5
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Chamfer
Limit & Nut Tolerance
P
208
P
Steel
M
Stainless Steel
M
K
Cast Iron
K
N
S
H
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
N
Non-Ferrous Metals
S
• Available on request as special manufacture. Subject to lead time.
