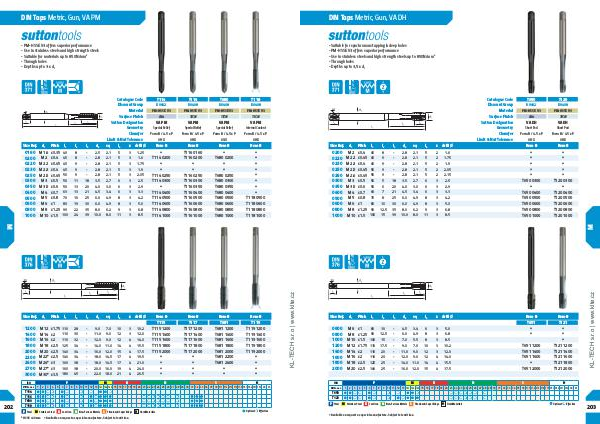

DIN Taps Metric, Gun, VA PM
- PM-HSSE V3 offers superior performance
- Use in stainless steels and high strength steels
- Suitable for materials up to 850N/mm 2
- Through holes
- Depths up to 3 x d 1
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Chamfer
Limit & Nut Tolerance
T114 T116 T680 T118
D0402 D0408 D0408 D0408
PM-HSSE V3 PM-HSSE V3 PM-HSSE V3 PM-HSSE V3
Blu TiCN TiCN TiCN
VA PM VA PM VA PM VA PM
Special Relief Special Relief Special Relief Internal Coolant
Form B / 4.5 x P Form B / 4.5 x P Form B / 4.5 x P Form B / 4.5 x P
6HX 6HX 6GX 6H
