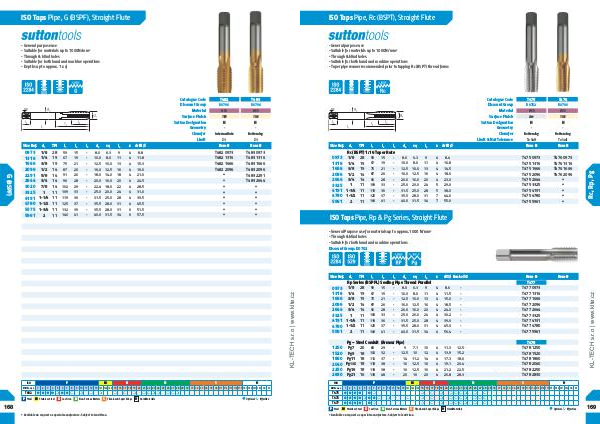

ISO Taps Pipe, Rc (BSPT), Straight Flute
Size Ref.
d 1
TPI
l 1
l 2
l 3
Rc (BSPT) 1:16 Taper Rate
0973 1/8 28
1316 1/4 19
1666 3/8 19
2096 1/2 14
2644 3/4 14
1
11
3325
4191 1-1/4 11
4780 1-1/2 11
2
11
5961
d 2
sq
l 4
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Chamfer
Limit & Nut Tolerance
drill ø
z
59 15 - 8.0 6.3 9 4 8.4
67 19 - 10.0 8.0 11 4 10.8
75 21 - 12.5 10.0 13 4 14.5
87 26 - 16.0 12.5 16 4 18.0
96 28 - 20.0 16.0 20 4 23.0
109 33 - 25.0 20.0 24 5 29.0
119 36 - 31.5 25.0 28 5 38.0
125 37 - 35.5 28.0 31 7 44.0
140 41 - 40.0 31.5 34 7 55.0
T475 T476
D0702 D0706
HSS HSS
Brt TiN
N N
- -
Bottoming Bottoming
To Suit To Suit
Item # Item #
T475 0973
T475 1316
T475 1666
T475 2096
T475 2644
T475 3325
T475 4191
T475 4780
T475 5961 T476 0973
T476 1316
T476 1666
T476 2096
•
•
•
•
•
Item # Item #
- General purpose use
- Suitable for materials up to 1000N/mm 2
- Through & blind holes
- Suitable for both hand and machine operations
- Taper pipe reamer recommended prior to tapping Rc (BSPT) thread forms
ISO Taps Pipe, Rp & Pg Series, Straight Flute
- General Purpose use for materials up to approx. 1000 N/mm 2
- Through & blind holes
- Suitable for both hand and machine operations
Discount Group: D0702
l 2
l 3
d 2
sq
l 4
Rp Series (BSPPL) Sealing Pipe Thread Parallel
-
8.0
6.3
9
0973 1/8 28 59 15
-
10.0 8.0
11
1316 1/4 19 67 19
-
12.5 10.0
13
1666 3/8 19 75 21
-
16.0 12.5
16
2096 1/2 14 87 26
-
20.0
