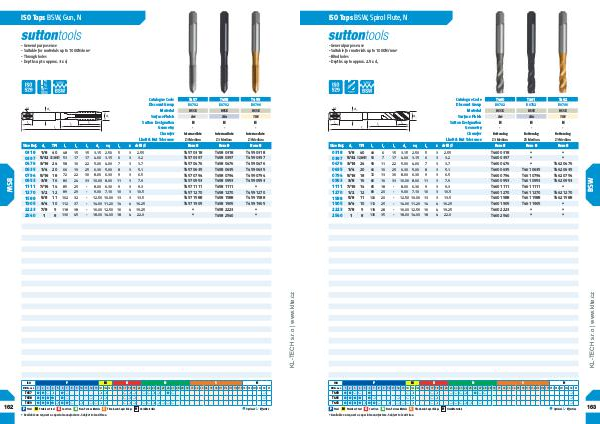

ISO Taps BSW, Spiral Flute, N
- General purpose use- Suitable for materials up to 1000N / mm 2- Blind holes- Depths up to approx. 2.5 x d 1
Catalogue Code
T460
T461
T462
Discount Group
D0702
D0702
D0706
Material
HSSE
HSSE
HSSE
Surface Finish
Brt
Blu
TiN
Sutton Designation
N
N
N
Geometry
-
-
-
Chamfer
Bottoming
Bottoming
Bottoming
Limit & Nut Tolerance
Z3 Medium
Z3 Medium
Z3 Medium
Size Ref.
d 1
TPI
l 1
l 2
l 3
d 2
sq
l 4
z
drill ø
Item #
Item #
Item #
0318
1 / 8 40
48
6
15
3.15
2.50
5
3
2.55
T460 0318
• •
0397
5 / 32 32( WHIT)
53
7
17
4.00
3.15
6
3
3.2
T460 0397
• •
0476
3 / 16
24
58
11
22
5.00
4.00
7
3
3.7
T460 0476
• T462 0476
0635
1 / 4
20
66
10
25
6.30
5.00
8
3
5.1
T460 0635
T461 0635
T462 0635
0794
5 / 16
18
72
13
30
8.00
6.30
9
3
6.5
T460 0794
T461 0794
T462 0794
0953
3 / 8
16
80
16
33
10.00
8.00
11
3
7.9
T460 0953
T461 0953
T462 0953
1111
7 / 16
14
85
18
-
8.00
6.30
9
3
9.3
T460 1111
T461 1111
•
1270
1 / 2
12
89
20
-
9.00
7.10
10
3
10.5
T460 1270
T461 1270
T462 1270
1588
5 / 8
11
102
20
-
12.50 10.00
13
3
13.5
T460 1588
T461 1588
T462 1588
1905
3 / 4
10
112
25
-
14.00 11.20
14
4
16.25
T460 1905
T461 1905
•
2223
7 / 8
9
118
28
-
16.00 12.50
16
4
19.25
T460 2223
• •
2540
1
8
130
35
-
18.00 14.00
18
4
22.0
T460 2540
• •
BSW
KL-TECH s. r. o | www. klte. cz
ISO
VDI 3323
T460 T461 T462
1 2
3 4
• • •
• • •
• • •
• • •
•
• • •
• •
•
5 6
P 7
8 9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
•
• •
•
• • •
• • •
P Steel M Stainless Steel K Cast Iron N Non-Ferrous Metals S Titanium & Super Alloys H Hard Materials
• Available on request as special manufacture. Subject to lead time.
M K
• • •
• • •
N
• •
• •
• •
• •
•
•
• •
•
S
H 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
• • •
• Optimal • Effective
