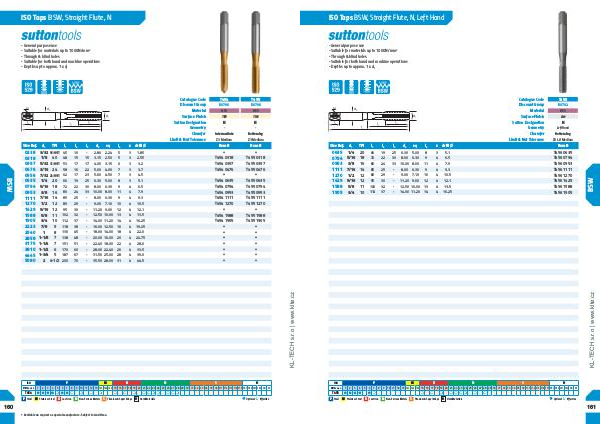

ISO Taps BSW, Straight Flute, N, Left Hand
- General purpose use
- Suitable for materials up to 1000N/mm 2
- Through & blind holes
- Suitable for both hand and machine operations
- Depths up to approx. 1 x d 1
d 1
0635
0794
0953
1111
1270
1429
1588
1905
TPI l 1 l 2 l 3 d 2 sq l 4 z drill ø
20
18
16
14
12
12
11
10 66 19 25 6.30 5.00 8 3 5.1
72 22 30 8.00 6.30 9 4 6.5
80 24 33 10.00 8.00 11 4 7.9
85 25 - 8.00 6.30 9 4 9.3
89 29 - 9.00 7.10 10 4 10.5
95 30 - 11.20 9.00 12 4 12.1
102 32 - 12.50 10.00 13 4 13.5
112 37 - 14.00 11.20 14 4 16.25
HSS
Brt
N
Left Hand
Bottoming
Z3 LH Medium
Item #
T456 0635
T456 0794
T456 0953
T456 1111
T456 1270
T456 1429
T456 1588
T456 1905
