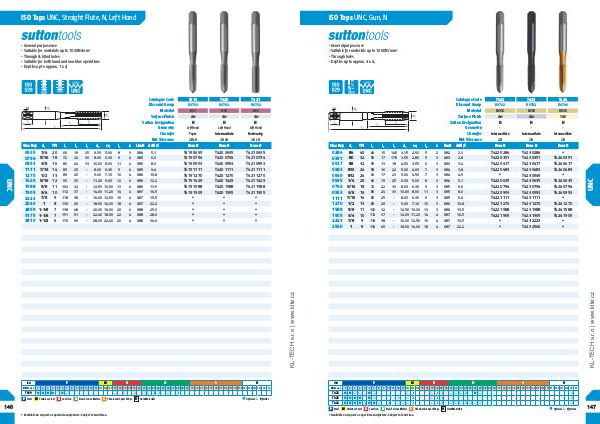

ISO Taps UNC, Straight Flute, N, Left Hand
- General purpose use- Suitable for materials up to 1000N / mm 2- Through & blind holes- Suitable for both hand and machine operations- Depths up to approx. 1 x d 1
UNC
Catalogue Code
T419
T420
T421
Discount Group
D0702
D0702
D0702
Material
HSS
HSS
HSS
Surface Finish
Brt
Brt
Brt
Sutton Designation
N
N
N
Geometry
Left Hand
Left Hand
Left Hand
Chamfer
Taper
Intermediate
Bottoming
Nut Tolerance
2B LH
2B LH
2B LH
Size Ref.
d 1
TPI
l 1
l 2
l 3
d 2
sq
l 4
z
Limit
drill ø
Item #
Item #
Item #
0635
1 / 4
20
66
19
25
6.30
5.00
8
3
GH4
5.1
T419 0635
T420 0635
T421 0635
0794
5 / 16
18
72
22
30
8.00
6.30
9
4
GH5
6.6
T419 0794
T420 0794
T421 0794
0953
3 / 8
16
80
24
33
10.00
8.00
11
4
GH5
8.0
T419 0953
T420 0953
T421 0953
1111
7 / 16
14
85
25
-
8.00
6.30
9
4
GH5
9.4
T419 1111
T420 1111
T421 1111
1270
1 / 2
13
89
29
-
9.00
7.10
10
4
GH6
10.8
T419 1270
T420 1270
T421 1270
1429
9 / 16
12
95
30
-
11.20
9.00
12
4
GH6
12.2
T419 1429
T420 1429
T421 1429
1588
5 / 8
11
102
32
-
12.50 10.00
13
4
GH6
13.5
T419 1588
T420 1588
T421 1588
1905
3 / 4
10
112
37
-
14.00 11.20
14
4
GH7
16.5
T419 1905
T420 1905
T421 1905
2223
7 / 8
9
118
38
-
16.00 12.50
16
4
GH7
19.5
• • •
2540
1
8
130
45
-
18.00 14.00
18
4
GH7
22.2
• • •
2858
1-1 / 8
7
138
48
-
20.00 16.00
20
4
GH8
25.0
• • •
3175
1-1 / 4
7
151
51
-
22.40 18.00
22
4
GH8
28.0
• • •
3810
1-1 / 2
6
170
60
-
28.00 22.40
26
4
GH8
34.0
• • •
KL-TECH s. r. o | www. klte. cz
146
ISO
VDI 3323
T419
1 2
3 4 5
•
•
•
•
6
P
•
•
7 8 9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
P Steel M Stainless Steel K Cast Iron N Non-Ferrous Metals S Titanium & Super Alloys H Hard Materials
• Available on request as special manufacture. Subject to lead time.
M
•
K
•
•
•
•
•
•
N
•
•
S
H 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
• Optimal • Effective
