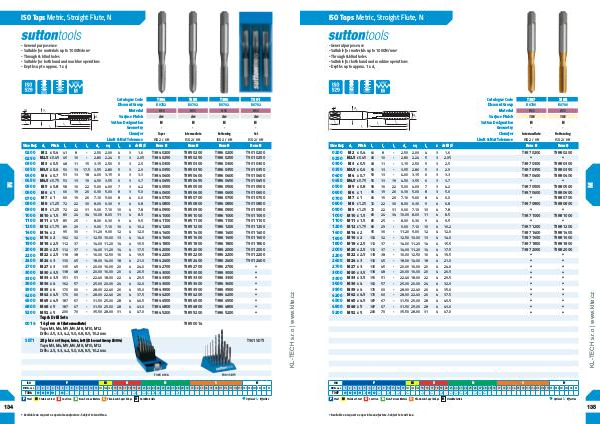

ISO Taps Metric, Straight Flute, N
- General purpose use- Suitable for materials up to 1000N / mm 2- Through & blind holes- Suitable for both hand and machine operations- Depths up to approx. 1 x d 1
Catalogue Code |
T387 |
T388 |
Discount Group |
D0706 |
D0706 |
Material |
HSS |
HSS |
Surface Finish |
TiN |
TiN |
Sutton Designation |
N |
N |
Geometry |
- |
- |
Chamfer |
Intermediate |
Bottoming |
Limit & Nut Tolerance |
ISO 2 / 6H |
ISO 2 / 6H |
Size Ref. |
d 1 |
Pitch |
l 1 |
l 2 |
l 3 |
d 2 |
sq |
l 4 |
z |
drill ø |
Item # |
Item # |
0200 M 2 x 0.4 41 8- 2.50 2.00 4 3 1.6 T387 0200 T388 0200
0250 M 2.5 x 0.45 45 10- 2.80 2.24 5 3 2.05 • •
0300 M 3 x 0.5 48 11- 3.15 2.50 5 3 2.5 T387 0300 T388 0300
0350 M 3.5 x 0.6 50 13- 3.55 2.80 5 3 2.9 T387 0350 T388 0350
0400 M 4 x 0.7 53 13- 4.00 3.15 6 3 3.3 T387 0400 T388 0400
0450 M 4.5 x 0.75 53 13 19 4.50 3.55 6 3 3.7 • •
0500 M 5 x 0.8 58 16 22 5.00 4.00 7 3 4.2 T387 0500 T388 0500
0600 M 6 x 1 66 19 26 6.30 5.00 8 3 5.0 T387 0600 T388 0600
0700 M 7 x 1 66 19 26 7.10 5.60 8 4 6.0 • T388 0700
0800 M 8 x 1.25 72 22 30 8.00 6.30 9 4 6.8 T387 0800 T388 0800
0900 M 9 x 1.25 72 22 31 9.00 7.10 10 4 7.8 • •
1000 M 10 x 1.5 80 24 34 10.00 8.00 11 4 8.5 T387 1000 T388 1000
1100 M 11 x 1.5 85 25- 8.00 6.30 9 4 9.5 • •
1200 M 12 x 1.75 89 29- 9.00 7.10 10 4 10.2 T387 1200 T388 1200
1400 M 14 x 2 95 30- 11.20 9.00 12 4 12.0 T387 1400 T388 1400
1600 M 16 x 2 102 32- 12.50 10.00 13 4 14.0 T387 1600 T388 1600
1800 M 18 x 2.5 112 37- 14.00 11.20 14 4 15.5 T387 1800 T388 1800
2000 M 20 x 2.5 112 37- 14.00 11.20 14 4 17.5 T387 2000 T388 2000
2200 M 22 x 2.5 118 38- 16.00 12.50 16 4 19.5 • •
2400 M 24 x 3 130 45- 18.00 14.00 18 4 21.0 • •
2700 M 27 x 3 135 45- 20.00 16.00 20 4 24.0 • •
3000 M 30 x 3.5 138 48- 20.00 16.00 20 4 26.5 • •
3300 M 33 x 3.5 151 51- 22.40 18.00 22 4 29.5 • •
3600 M 36 x 4 162 57- 25.00 20.00 24 4 32.0 • •
3900 M 39 x 4 170 60- 28.00 22.40 26 4 35.0 • •
4200 M 42 x 4.5 170 60- 28.00 22.40 26 4 37.5 • •
4500 M 45 x 4.5 187 67- 31.50 25.00 28 4 40.5 • •
4800 M 48 x 5 187 67- 31.50 25.00 28 4 43.0 • •
5200 M 52 x 5 200 70- 35.50 28.00 31 4 47.0 • •
M KL-TECH s. r. o | www. klte. cz
ISO
VDI 3323
T387
1 2
3 4
•
•
•
•
•
•
•
•
5 6
P 7
8 9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
•
•
•
P Steel M Stainless Steel K Cast Iron N Non-Ferrous Metals S Titanium & Super Alloys H Hard Materials
• Available on request as special manufacture. Subject to lead time.
M
•
K
•
•
•
•
•
•
N
•
•
•
S
H 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
• Optimal • Effective
135
