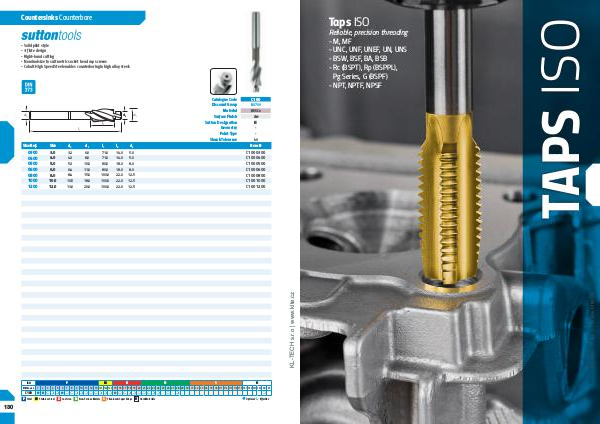

Countersinks Counterbore
- Solid pilot style
- 3 flute design
- Right-hand cutting
- Nominal size to suit metric socket head cap screws
- Cobalt High Speed Steel enables counterboring in high alloy steels
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Point Type
Shank Tolerance
d 3
Size Ref.
Size
0300
0400
0500
0600
0800
1000
1200
HSS Co
Brt
N
-
-
h6
d 3 d 1 l 1 l 2 d 2 Item #
3.2 6.0 71.0 14.0 5.0 4.3 8.0 71.0 14.0 5.0 5.3 10.0 80.0 18.0 8.0 6.4 11.0 80.0 18.0 8.0 8.4 15.0 100.0 22.0 12.5 10.5 18.0 100.0 22.0 12.5 13.0 20.0 100.0 22.0 12.5 C100 0300
C100 0400
C100 0500
C100 0600
C100 0800
C100 1000
C100 1200
