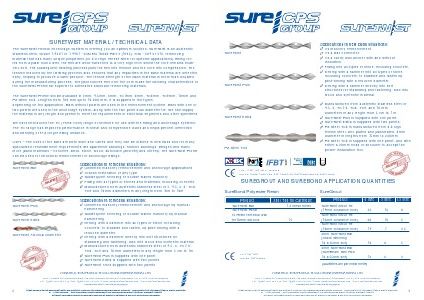

suretwist brochure | Page 2

SURETWIST MATERIAL / TECHNICAL DATA The SureTwist Helical Anchorage System is offering you an optimum solution. SureTwist is an austenitic stainless steel, Grade 1.4301 or 1.4401 - DIN EN 10088 Part 3 (1995). AISI - 304 or 316, reinforcing material that has many unique properties (Or 8.8 High Tensile Steel for specific applications). Being rolled from a plain round wire, the fins are work-hardened to a very high level whilst the core remains relatively soft. The subsequent twisting process puts the fins into tension and the core into compression. The tension induced by the twisting process also ensures that any impurities in the base material are detected early, helping to produce a safer product. The tensile strength of the base material is more than doubled during the manufacturing process. The pronounced fins over the core make the bonding characteristics of the SureTwist Profile far superior to alternative standard reinforcing materials. The SureTwist Profile will be available in 3mm, 4,5mm, 6mm, TC7mm, 8mm, TC8mm, TC9mm, 10mm and PZ Steel TC8. Lengths from 100 mm up to 10.000 mm. It is supplied in ten types depending on the application. Bars without points are used in the reinforcement system. Bars with one or two points are used in the anchorage system, along with the two point dual diameter tie. We can supply the material in any length and profile to meet the requirements of structural engineers and other specifiers. We have introduced the TC (Thick Core) range of sections for use with the fixing and anchorage systems. The TC range has improved performance in shear and compressive loads and helps prevent deflection and bending over a longer fixing distance. Uses – The uses of the bars are both wide and varied and they can be utilised in new build and for many specialised refurbishment requirements like apartment buildings, historic buildings, bridges and many more (build materials – concrete, brick, stone, wood, autoclave (aircrete) and others). The SureTwist Profile can be used for structural reinforcement or anchorage fixings. Applications in remedial situations:  Unlimited masonry reinforcement and anchorage applications  Cracks restoration of any type  Subsequent needling of double walled masonry  Fixing into all types of stones and materials, including concrete  Manufactured from austenitic stainless steel of 3, 4.5, 6, 8, TC8, TC9 and 10mm diameters in any length from 7cm to 10m SureTwist Bar SureTwist Plus SureTwist Extra SureTwist AS Dual Diameter Applications in remedial situations:  Unlimited masonry reinforcement and anchorage by manual hammering  Subsequent needling of double walled masonry by manual hammering  Driving with a hammer into all types of stone, including concrete, to stabilize and fasten, by pilot-drilling with a reduced diameter  Driving with a hammer directly into soft structures for stabilizing and fastening, also into wood and synthetic material  Manufactured from austenitic stainless steel of 4.5, 6, TC7, 8, TC8, TC9 and 10 mm diameters in any length from 5 cm to 1m  SureTwist Plus is supplied with one point  SureTwist Extra is supplied with two points  SureTwist AS is supplied with two points CONSTRUCTION PRODUCTS SOLUTIONS INTERNATIONAL LTD. Unit 3, Haslemere Industrial Estate, Pig Lane, Bishop’s Stortford, Hertfordshire. CM23 3HG. United Kingdom. Tel: [phone] - Fax: [phone] - e mail: [email protected] - www.surecps-group.com Company Reg. 6969591 VAT Reg. GB 824 4246 40 2 Please always wear the appropriate safety and protective clothing when installing fixing and anchor products. Always observe the necessary Health & Safety guidelines. © All text copyright. Above information is given as guidance only and should always be verified by a suitable engineer. The above information is given in good faith, and may be subject to alteration at any time without prior notification.
