BASIC FUNCTION
BASIC FUNCTION

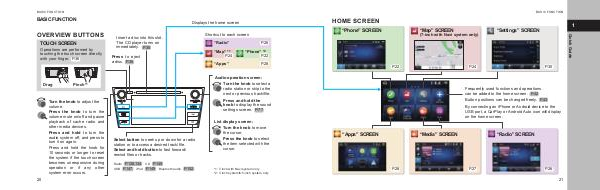

OVERVIEW BUTTONS
TOUCH SCREEN
Operations are performed by
touching the touch screen directly
ZLWK\RXU¿QJHU P.36
Displays the home screen
Insert a disc into this slot.
The CD player turns on
immediately. P.35
Shortcut to each screen
“Radio”
“Map” * 1
P.24
Press to eject
a disc. P.35
P.26
“Phone” * 2
“Apps”
P.22
P.28
Audio operation screen:
Drag
Turn the knob to adjust the
volume.
Press the knob to turn the
volume mute on/off and pause
playback of cache radio and
other media devices.
Press and hold to turn the
audio system off, and press to
turn it on again.
Press and hold the knob for
10 seconds or longer to reset
the system if the touch screen
becomes unresponsive during
operation or if any other
system error occurs.
20
Turn the knob to select a
radio station or skip to the
QH[WRUSUHYLRXVWUDFN¿OH
Pinch* 1
Press and hold the
knob to display the sound
settings screen. P.77
List display screen:
Turn the knob to move
the cursor.
Select button to seek up or down for a radio
VWDWLRQRUWRDFFHVVDGHVLUHGWUDFN¿OH
Select and hold button to fast forward/
UHZLQG¿OHVRUWUDFNV
Radio P.128,134
USB P.147
Press the knob to select
the item selected with the
cursor.
CD P.145
iPod P.149
Bluetooth audio P.152
*1: 7-inch with Navi system only
*2: 7-inch system/6.5-inch system only
