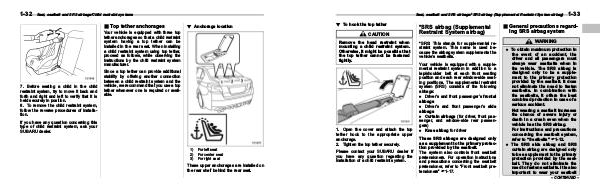

Subaru WRX & WRX STI Manuals 2018 WRX & WRX STI Owner’s Manual | Page 64

1-32
Seat, seatbelt and SRS airbags/Child restraint systems
& Top tether anchorages
! Anchorage location
Your vehicle is equipped with three top
tether anchorages so that a child restraint
system having a top tether can be
installed in the rear seat. When installing
a child restraint system using top tether,
proceed as follows, while observing the
instructions by the child restraint system
manufacturer.
7. Before seating a child in the child
restraint system, try to move it back and
forth and right and left to verify that it is
held securely in position.
8. To remove the child restraint system,
follow the reverse procedures of installa-
tion.
Since a top tether can provide additional
stability by offering another connection
between a child restraint system and the
vehicle, we recommend that you use a top
tether whenever one is required or avail-
able.
If you have any question concerning this
type of child restraint system, ask your
SUBARU dealer.
1)
2)
3)
For left seat
For center seat
For right seat
These upper anchorages are installed on
the rear shelf behind the rear seat.
