11-20

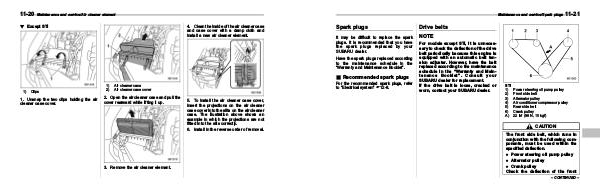

Maintenance and service/Air cleaner element
! Except STI
1)
Clips
1. Unsnap the two clips holding the air
cleaner case cover.
4. Clean the inside of the air cleaner case
and case cover with a damp cloth and
install a new air cleaner element.
1)
2)
Air cleaner case
Air cleaner case cover
2. Open the air cleaner case and pull the
cover rearward while lifting it up.
3. Remove the air cleaner element.
5. To install the air cleaner case cover,
insert the projections on the air cleaner
case cover into the slits on the air cleaner
case. The illustration above shows an
example in which the projections are not
fitted into the slits correctly.
6. Install in the reverse order of removal.
