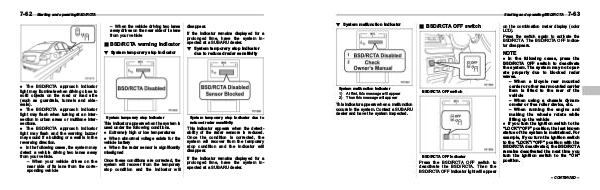

Subaru WRX & WRX STI Manuals 2018 WRX & WRX STI Owner’s Manual | Page 415

Starting and operating/BSD/RCTA
! System malfunction indicator
& BSD/RCTA OFF switch
7-63
on the combination meter display (color
LCD).
Press the switch again to activate the
BSD/RCTA. The BSD/RCTA OFF indica-
tor disappears.
NOTE
System malfunction indicator
1) At first, this message will appear
2) Then this message will appear
BSD/RCTA OFF switch
This indicator appears when a malfunction
occurs in the system. Contact a SUBARU
dealer and have the system inspected.
BSD/RCTA OFF indicator
Press the BSD/RCTA OFF switch to
deactivate the BSD/RCTA. Then the
BSD/RCTA OFF indicator light will appear
. In the following cases, press the
BSD/RCTA OFF switch to deactivate
the system. The system may not oper-
ate properly due to blocked radar
waves.
– When a bicycle rear mounted
carrier or other rear mounted carrier
item is fitted to the rear of the
vehicle
– When using a chassis dynam-
ometer or free roller device, etc.
– When running the engine and
making the wheels rotate while
lifting up the vehicle
. If you turn the ignition switch to the
“LOCK”/“OFF” position, the last known
status of the system is maintained. For
example, if you turn the ignition switch
to the “LOCK”/“OFF” position with the
BSD/RCTA deactivated, the BSD/RCTA
remains deactivated the next time you
turn the ignition switch to the “ON”
position.
– CONTINUED –
